نام محصول:
دریچه
نام انگلیسی:

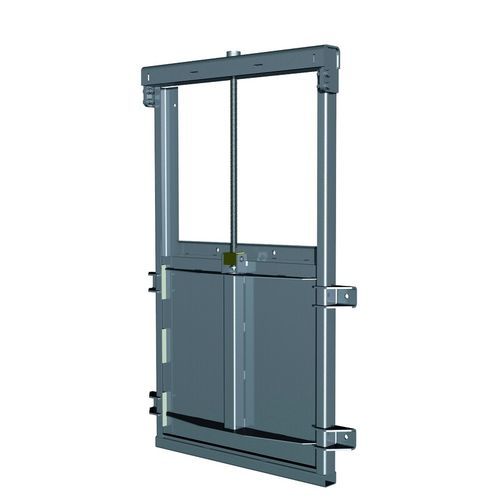

Penstock valve ERI®plus
برند:
VAG-Group
مشخصات:
Shut-off and control penstock with a compact design (closed frame design); four-side sealing, made of stainless steel, for wall mounting. Especially sturdy design with separate sliding and sealing system. Suitable for use in wastewater applications, water treatment plants, in stormwater retention basins and in flood protection.
Compact valve with self-contained frame design for wall mounting with anchors
Vibration-free guiding of the gate over the entire travel; can be used in intermediate positions as control valve
Sliding system between gate and frame
Sturdy welded structure; components dip pickled and passivated
Rotatable stem nut
Integrated and chambered profiled seal
Seal between valve and wall mounted to the valve and ready for operation
Non-rising stem
Sealing system/standard:
Four side sealing
Tightness: max. 1% (on seating pressure) and max. 5% (off seating pressure) of leakage rate acc. to DIN 19569 Part 4 in installed state
Square opening for wall mounting with anchors
توضیحات:
Type
slide
Operation
with handwheel
Function
for control, shut-off
Media
for wastewater, rainwater
Applications
penstock
Material$
stainless steel
Other characteristics
compact, standard, DIN, chemical-resistant, vertical
Temperature
50 °C(122 °F)
