نام محصول:
دریچه
نام انگلیسی:

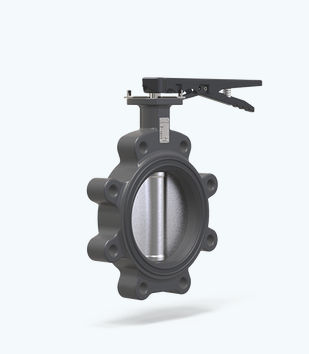

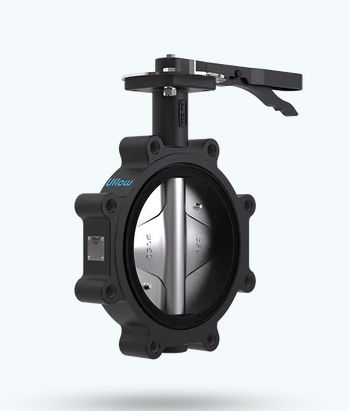

Butterfly valve BL
برند:
UFLOW AUTOMATION
مشخصات:
> Suitable to: ASMI B16.5 150#
> – Leakage Class: 100% Tightness at fully differential pressure
> – Standard: API 609, BS 5155, ISO 5211, API 598, ASME B16.5
> – Body Material: Cast Iron(Cl), SGI, WCB, CF8, CF8M
> – Disc Material: SGI, CF8, CF8M, WCB
> Body Liner / Seat Material: NBR, EPDM, VITON, SILICONE, PTFE
> Shaft Bearing Material: PTFE
Features
Bi-directional zéro leakage butterfly valve.
Accurate dual stem sealing prevents leakage.
Design Standard : ISO 5211, API 609, ASME B16.5 150#.
ISO Pad for mounting, Gear Operator / Actuator.
Standard flanged drilling : PN10/PN16, JIS10K/16K, ASME 125/150#.

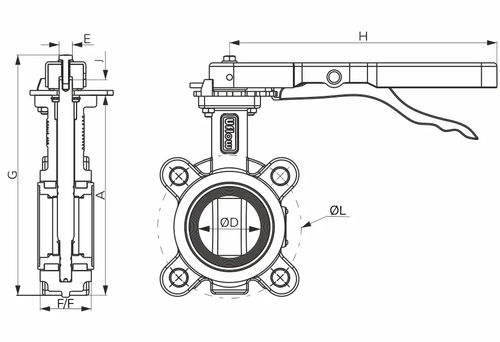

Face to Face Dimension : API 609 (CAT A).
Operator : Hand Lever / Gear / Actuator.
Extremely small play between the stem and dise due to ‘Double D’drive.
100% Tested With Pneumatic And Fluid (Water) Media.
Operator mounting flange : As per ISO 5211.
Leakage Class : 100% tightness at full differential Pressure.
توضیحات:
Type
butterfly
Operation
lever
Function
for control
Body$
mounting flange, seat, lug type
Material$
EPDM, stainless steel, cast iron, NBR, silicone
Other characteristics
ISO, standard, bidirectional
DN
Min.: 50 mm(1.969 in)Max.: 300 mm(11.811 in)
Pressure
6 bar, 10 bar, 16 bar(87 psi, 145 psi, 232.1 psi)
Temperature
Min.: -30 °C(-22 °F)Max.: 200 °C(392 °F)
