نام محصول:
دریچه
نام انگلیسی:
Ball valve ACP series
برند:
UFLOW AUTOMATION
مشخصات:

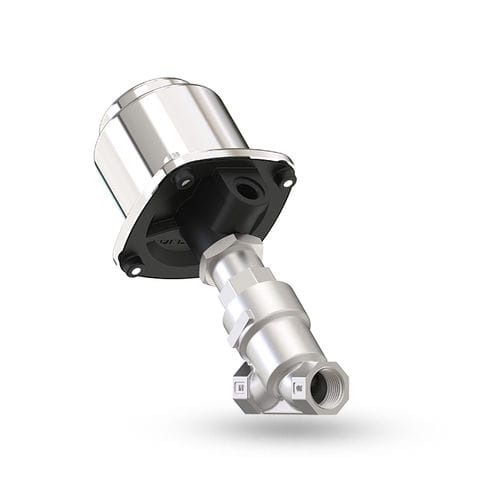

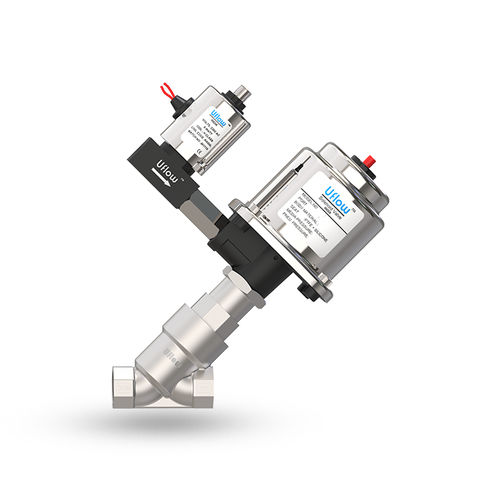

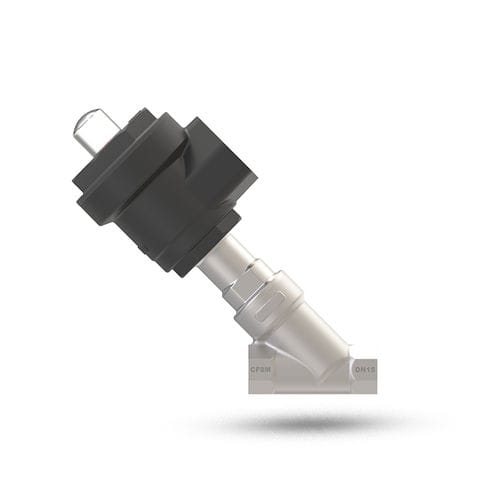

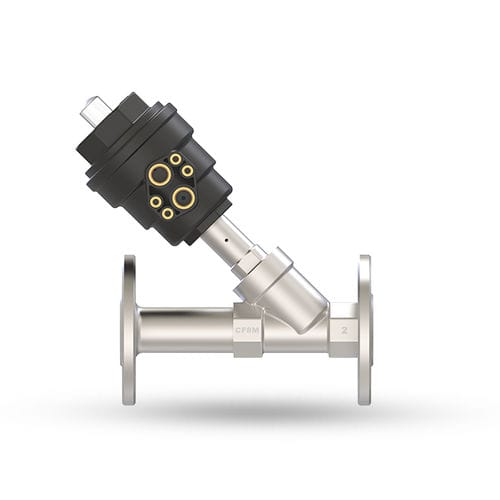

Angle Seat Valve with Plastic Operator (NC/NO/Double Acting)
> Body Material: – SS ASTM A351 Grade CF8 / CF8M
> Seal: – PTFE / PEEK / VITON
Actuator Information
> – Cover: Nylon Glass-Filled (Corrosion résistive) with SS Liner
> – Plate: NBR / VITON
> Life: Three Million Cycle Tested
> Other Technical Data: – Available on Request – Adjust Stroke Limiter – Position Sensor
Features
Lubricated air not essential.
Application: Steam, Autoclave and Sterilizer, Ink and Paint dispensing, Industrial compressor bottling and dispensing equipment, textile dying and drying and pharmaceutical.
Multiple Function with the same operator – NO / Bi-Directional.
Flow direction below or above the seat.
Rotatable Operator – 360°.
Transparent dome for visual valve open indication.
توضیحات:
Type
ball
Operation
pneumatically-operated
Media
for water, for oil, for diesel, for gas, for steam, for air
Body$
flange, screw-in, angle seat, welded, double
Applications
for the pharmaceutical industry, for compressors, for dispensers
Material$
plastic, stainless steel
Other characteristics
high-pressure, normally closed, corrosion-resistant, double-acting, with seal, normally open, single-acting
DN
Min.: 0.5 inMax.: 2.5 in
Pressure
Min.: 3.5 bar(50.8 psi)Max.: 8 bar(116 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 180 °C(356 °F)
Flow rate
Min.: 6 m³/h(211.89 ft³/h)Max.: 120 m³/h(4,237.76 ft³/h)
