نام محصول:
دریچه
نام انگلیسی:
Ball valve
برند:
SOMAS
مشخصات:

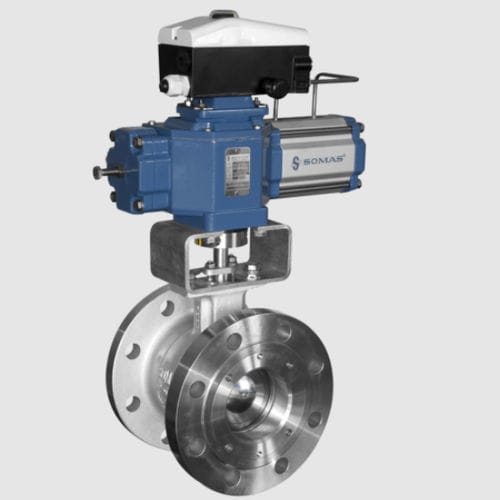

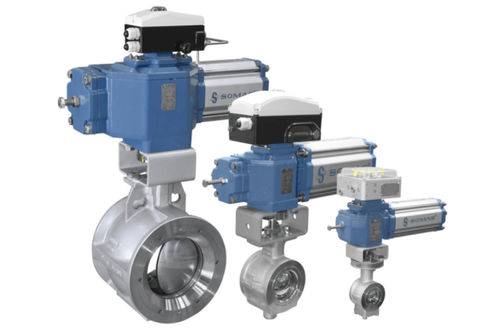

Control valves are an important part of Somas valve program because they come in handy in just about any field. For example, pulp and paper production, sugar, engine applications or the mining industry. Most of our valves can be utilized as control valves. Ball segment valves work well for this purpose because of the one-piece design of the ball segment and valve shaft. Butterfly valves are also very suitable as control valves.
Ball valves are less common in control applications because of its flow characteristics compared to a ball segment or butterfly valve. It does however offer advantages in certain specific cases. The valve has a bi-directional seat and a low resistance when opened fully, as such it can be used as a control valve if needed.
DELAYS ARE A THING OF THE PAST WITH SOMAS CONTROL VALVES
One of the most central aspects of any control valve is the connection between the valve shaft and an actuator. Somas actuators come equipped with a patented friction coupling that eliminates the risk of any delay in communication between the shaft and actuator.
Somas valves, actuators and positioners have all the required traits for a great control valve. Good control characteristics and the torque transmission are free of delays. Below you will find general information about all of our valves that can be used for control applications.
Ball segment valves with the ball segment and valve shaft in a ”one-piece” design
Backlash-free connections between the valve and actuator
Reliable connection between actuator and positioner
توضیحات:
Type
ball
Operation
electric
Function
for control, regulating
Body$
seat
Applications
for industrial applications, motor, actuator, shaft
DN
Min.: 12.5 mm(0.492 in)Max.: 1,200 mm(47.244 in)
Pressure
Min.: 10 bar(145 psi)Max.: 100 bar(1,450.4 psi)
