نام محصول:
دریچه solenoid Latching مغناطیسی
نام انگلیسی:

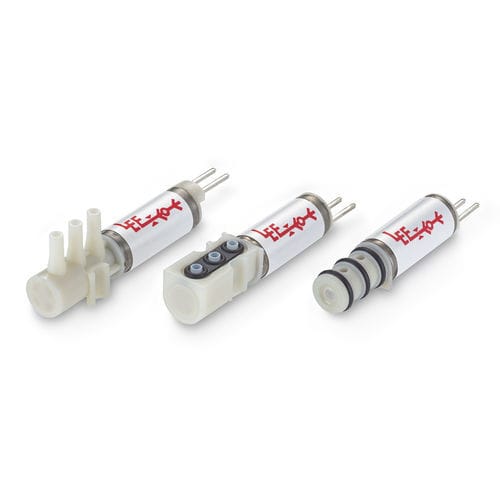

Magnetic latching solenoid valve LHL series
برند:
THE LEE COMPANY
مشخصات:
This small (7 mm), low power, 3/2, latching solenoid valve is ideal for directional control of gases or piloting samples in battery-operated, heat sensitive pneumatic applications. Thanks to its magnetically latching design, the valve will hold its flow state without power and only requires a momentary electrical pulse to switch state. With consistent, extremely reliable performance and low leakage, this valve offers high value across its cycle life. Each valve is customizable and 100% tested to ensure performance.
Key Product Facts
Latching Design:Holds latched state without power
Ultra-Low Power & Low Heat:5.5 mJ / switch
Lightweight:4.5 grams
Application Examples:
• – Control air & vacuum to pilot samples in microfluidic systems
• – Calibrate, auto-zero or feed gases and samples to sensors
• – Blend gases in a flow stream
Used in medical & scientific instruments, such as:
• – Molecular Diagnostics
• – Respiratory Therapy
• – Environmental Analyzers
• – Breath Analysis
• – Patient Simulators
• – Portable gas & VOC detection
Magnetically Latched Design: holds flow state without power
Ultra-Low Power: as low as 5.5 mJ/switch
Small Size (7 mm) & Lightweight (as low as 2.5g)
Low Leakage: <50 µLPM across life (air)
Ideal For Portable Devices
توضیحات:
Control
direct-operated
Ports/positions
3-way
Function
normally closed, normally open
Medium
for gas, for vacuum
Body
compact, plastic, small, manifold
Other characteristics
bistable, electrically-operated, low-pressure, balancing, vent, control, cartridge, low power consumption, magnetic latching, push-in, energy-saving, fast-opening, exhaust, for filling applications, mixer, low-noise, high-performance
DN
7 mm(0.276 in)
Voltage
Min.: 3 VMax.: 24 V
Temperature
Min.: -40 °C(-40 °F)Max.: 49 °C(120 °F)
Pressure
Min.: 0 psiMax.: 15 psi
