نام محصول:
دریچه
نام انگلیسی:

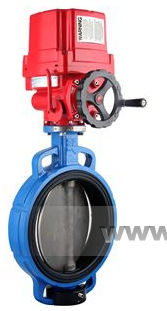

Butterfly valve T-EAV800 series
برند:
SMS-TORK
مشخصات:
The T-EAV800 electric actuated butterfly valves is a series of valves that works on different mediums: water,hot water, air, aggressive fluid, food industry, gas, oil and steam among others. The TORK wafer type butterfly valves: T-KV, W1120 Serie and W121 series features a body of GG 25 casting iron, epoxy coated (W1120 series), a disc made of GGG50 die casting and AISI 316 standard or on request a rilsan coated iron or AISI 304 stainless steel. Its seal is EPDM standard with temperature ranges from -30°C to 130°C. The following seal is also available on request: NBR, FKM, PTFE, SILIKON and EPDMH. It can take pressures of up to 10 bar or up to 16 bar when requested. It stem is at AISI 420 with hand and actuated control options.
توضیحات:
Type
butterfly
Operation
electrically-actuated
Function
for control
Media
for hot water
Pressure
Max.: 16 bar(232.1 psi)Min.: 0 bar(0 psi)
Temperature
Max.: 130 °C(266 °F)Min.: -30 °C(-22 °F)
