نام محصول:
دریچه
نام انگلیسی:
Butterfly valve KV series
برند:
singold gerätetechnik gmbh
مشخصات:

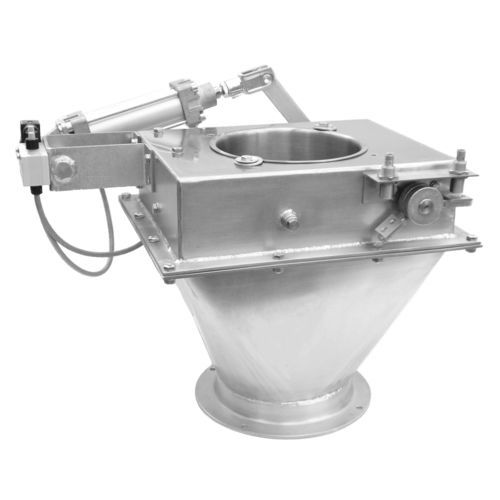

The “singold” Flap Shutter is used for all kinds of bulk material and solid-liquid mixtures, when the container is to be completely emptied.
Examples:

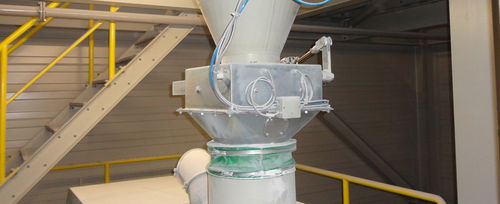

Container scales, container, primary and secondary vessels in mixing plants, wagons, reservoirs under filters and separators, cone worm mixers
By means of the lever system, the flap is vertically moved down and swivelled laterally by the side of the discharge opening, thus enabling a free discharge of the product.
Joints and bearings are situated outside the product stream, their standard execution is service-free (until approx. 200 degrees C).
The pneumatic design allows the flap quick opening, so that the product stream is not deviated. Also in case of manually operated flap designs, large nominal widths can be opened quickly with low energy consumption at a high flap load.

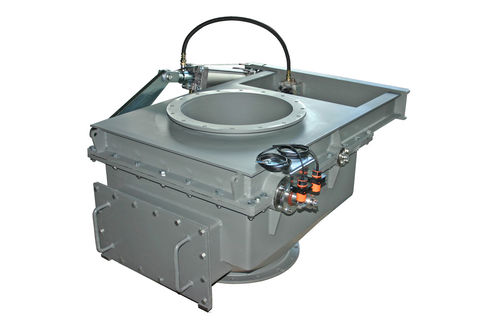

The Flap Shutter is available in different designs, materials and compressive strength.
• The sophisticated mechanism, no friction and shear forces occur on the seal, so that it does not wear.
• The closing flap swings completely from the product stream. The flowing product is therefore not damaged or modified.
• No wear of the flap develops due to the flap swinging completely from the product flow.
توضیحات:
Type
butterfly
Operation
pneumatic
Function
flow control
Associated function
discharge
