نام محصول:
دریچه
نام انگلیسی:
Ball valve GUD series
برند:
Shanghai EVP Vacuum Technology Co., LTD
مشخصات:

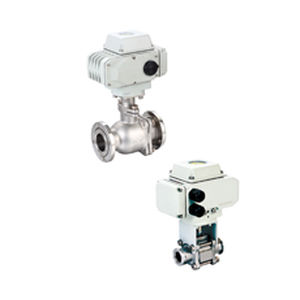

GUD Series Electric Vacuum (Pressure) Ball Valve
Description: Gud series electric vacuum (pressure) ball valve adopts rotary electric and electronic regulating valve driving device
Gud series electric vacuum (pressure) ball valve adopts rotary electric and electronic regulating valve driving device, which can realize the control of valve opening, closing or middle position through the switch of external power supply (controlled by manual position switch or computer) or external input signal, so as to connect or cut off the air flow in vacuum pipeline. The valve is straight through type, sealed by spherical surface, so it can be used in vacuum state or low pressure state, and can be installed at any position.
Applicable working medium is acid and alkaline gas or liquid.
توضیحات:
Type
ball
Operation
electric, manual
Function
for control, regulating
Body$
straight
Applications
vacuum, liquids
DN
Min.: 10 mm(0.394 in)Max.: 200 mm(7.874 in)
Temperature
Min.: -30 °C(-22 °F)Max.: 240 °C(464 °F)
