نام محصول:
دریچه
نام انگلیسی:

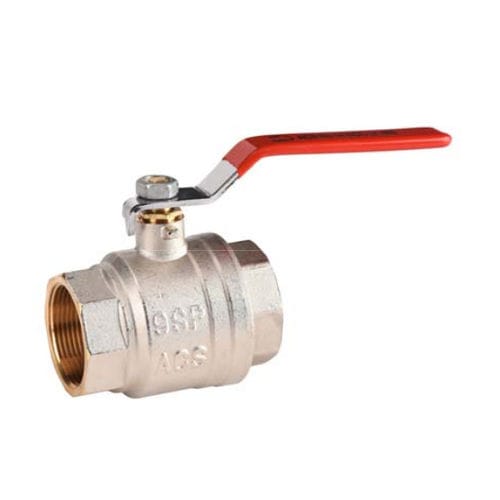

Ball valve 509 series
برند:
SFERACO
مشخصات:
The 509 Series features a valve unit built for application in water distribution. It is equipped with a handle made from steel or aluminum, in a flat or butterfly design that can be reversed. The handle also contains the ACS number, date manufactured, and logo. This valve can operate with temperatures from 10 to 120 degrees Celsius in various pressure conditions. This series also provides a complete bore valve with anti blow-out stem and solid ball in PTFE packing.
SPECIFICATIONS :
• – Body in lead free brass CW510L 4MS (Cu2r»42)
• – Brass CW510L according to the matenals list authorized by the 4 MS
• – Full bore
• – Anti blow-out stem
• – Large fiat sealing face
• – Stainless Steel bail from DN3/4* to 4″
• – PTFE packing
• – Fiat Steel handle or aluminium butterfly handle
• – Handle nut Dacromet coated ( sait spray protection )
• – Marking body * 9SP * with ACS. 4MS. fabrication date and logo
• – ACS and 4MS marking on the handle
• – Réversible handle
• – Hole on the handle allowing the lockmg of the valve (thanks to a nlsan clamp)
4MS lead free brass bail valves full bore with large fiat sealing face for drinking water and water distribution. PTFE packing and anti blow-out stem.
Fiat black réversible Steel handle with Dacromet coating.
Stainless Steel bail from DN34″ to 4″, warranty 5 Years
USE:
• – Heating. drinkable water. cooling, watering and irrigation
• – Min température Ts : – 10°C
• – Max température Ts :♦ 120°C
• – Max Pressure Ps : 40 bars up to DN 1“. 30 bars in 1*1/4.25 bars in 1*1/2.20 bars in 2* and 10 bars over
توضیحات:
Type
ball
Operation
lever
Function
distribution
Media
for water
Body$
female-female, coated
Material$
steel, aluminum, nickel-plated brass, PTFE, stainless steel, brass
Other characteristics
full-flow
DN
Min.: 0.25 inMax.: 4 in
Pressure
10 bar, 20 bar, 25 bar, 30 bar, 40 bar(145 psi, 290.1 psi, 362.6 psi, 435.1 psi, 580.2 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 120 °C(248 °F)
