نام محصول:
دریچه
نام انگلیسی:

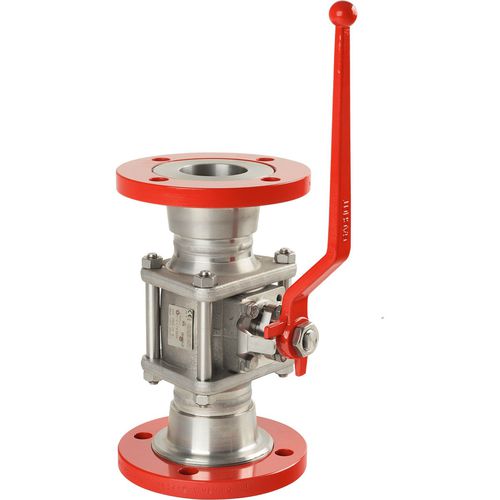

Ball valve V16 Gachot®
برند:
Sapag Valves
مشخصات:
V16 Gachot® Three piece Ball Valve with unique design for easy and quick installation and maintenance.
General applications
General industry, Chemical and petrochemical industry, Shipbuilding, etc.
Technical data
Leakage Rate: EN12266-1 – Rate A (no leakage)
Flange / BW / SW / Tapped
Options
Heating jacket
Sight Glass
Check valve
Electrical continuity
Advantages
Face to face: ISO5752-S01 (Flanged)
Face to face: EN 12982 (BW/SW – stainless steel version)
Anti blowout system in standard
توضیحات:
Type
ball
Operation
lever
Body$
flange, 3-piece
Applications
for the chemical industry, for heating, for the petroleum industry, for shipbuilding
Material$
stainless steel, carbon steel
Number of channels
3-way
Associated function
reducing
Other characteristics
standard, full-flow
DN
Min.: 8 mm(0.315 in)Max.: 200 mm(7.874 in)
Pressure
Min.: 0 bar(0 psi)Max.: 100 bar(1,450.4 psi)
Temperature
Min.: -50 °C(-58 °F)Max.: 305 °C(581 °F)
