نام محصول:
دریچه
نام انگلیسی:

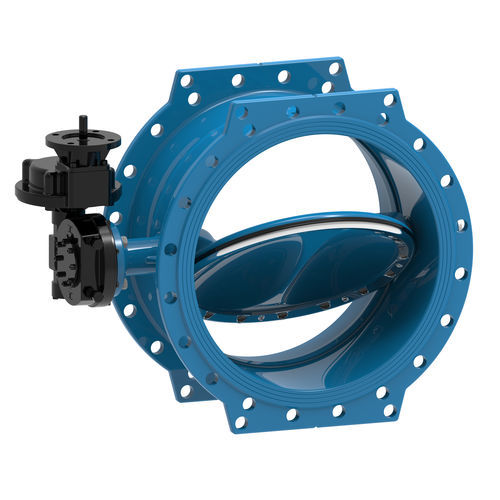

Butterfly valve BTF-E
برند:
Raphael Valves Industries (1975) Ltd
مشخصات:
RAPHAEL’s new double eccentric butterfly valve represents the essence of an efficient butterfly valve designed for when economy is a high priority.
BTF-E is functional and reliable, providing reduced complexity.
It covers the needs in standard applications for drinking water in terms of design, materials and standards.
ADVANTAGES
ESSENTIAL: Design and material selection are optimized for use in low and medium pressure drinking water
applications.
DURABLE: Uninterrupted corrosion protection with pin-less connection and closed disc eyes ensure long service life and clean water.
EFFICIENT: Flow-efficient design for minimized head loss and low energy consumption significantly reduces the cost of ownership.
توضیحات:
Type
butterfly
Operation
with handwheel
Media
for water
Body$
double-offset
Applications
for the chemical industry
Other characteristics
ANSI, standard, DIN, high-performance
DN
Min.: 200 mm(7.874 in)Max.: 1,800 mm(70.866 in)
Pressure
Min.: 16 bar(232.1 psi)Max.: 31 bar(449.6 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 50 °C(122 °F)
