نام محصول:
دریچه
نام انگلیسی:
Plug valve
برند:
ProSys Sampling Systems Limited
مشخصات:

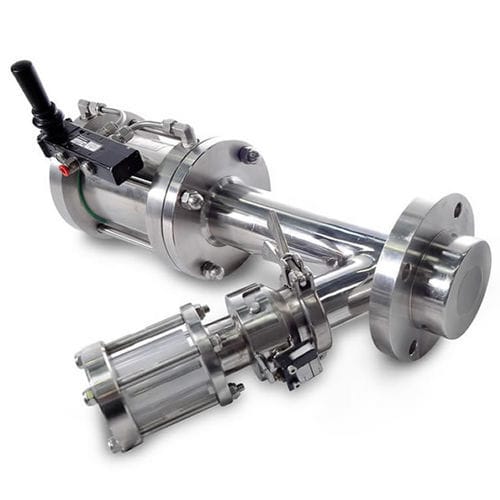

Non-Intrusive Plug Valve Sampler
• The plug is flush with the vessel wall when retracted.
• Extracts a representative sample from the side of a vessel/dryer.
• Can sample under vacuum or over-pressure
• Sample Plug retracts to open a path for the product to flow to the sample bottle.
• Client agitator can be used to push product to the sample bottle.
• Can be manually or automatically operated.
Operation
• The plug, which is flush with the vessel wall, is retracted.
• Powder flows into the opening and to the bottle.
• The motion of the agitator is used to push product into the Sampler.
• When complete the Plug is extedned forward pushing excess product back into the dryer.
• A nitrogen purge can be used to assist the sample from the sample chamber to the sample bottle.
Intrusive Plug Valve Sampler
• Intrusive sampler, the plug flush with vessel wall when retracted.
• Extracts a representative sample from the bottom or side of a vessel/dryer.
• Can sample under vacuum or over-pressure.
• Sample is extracted by plug.
• Can be manually or automatically operated.
Operation
• The plug, which is flush with the vessel wall, is extended.
• Powder surrounds the plug.
• As the plug is retracted, a sample is brought back into the sample chamber where it falls into the sample bottle.
• A nitrogen purge can be used to assist the sample from the sample chamber to the sample bottle.
Features
• Connected via vessel pad flange.
• Vacuum/pressure sealing guaranteed.
• Nitrogen purge & CIP Connections.
• All contact parts are 316L s.s. or Hastelloy® C22 with PTFE or Kalrez® Elastomers.
• Borosilicate Glass / Stainless steel pressure rated bottle.
توضیحات:
Type
plug
Operation
manual
Function
sampling, purge
Media
for nitrogen
Applications
flange, vacuum, powder
Material$
Hastelloy®, PTFE, stainless steel, borosilicate glass
Pressure
Min.: -1 bar(-14.5 psi)Max.: 9 bar(130.5 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 150 °C(302 °F)
