نام محصول:
دریچه
نام انگلیسی:
Ball valve MONOPOK series
برند:
POK
مشخصات:

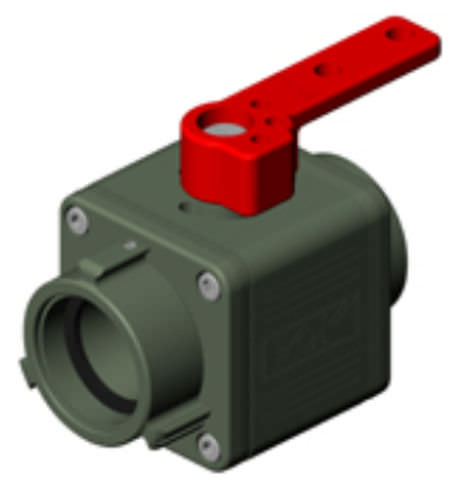

The “Monopok” valve is a 1/4 turn ball valve shutoff, with full waterway, made of an aluminium alloy
section heat-treated. The whole is machined on a computerised and automated machine tool, which
guarantees a precision and an unequalled manufacturing quality.
It is designed to be used as a suction or discharge ball valve.
To allow you to adapt to any situation, the Monopok shutoff offers multiple configurations.
The main feature to choose is the waterway diameter: DN25, DN40, DN65 or DN80.
You can also choose the raw material of the ball valve: Aluminium anodised (as standard for the whole
range), stainless steel or polyamid.
The choice of the control handle is also crucial, depending on the use of your Monopok. You can choose
between the shapes and lengths (below) for a direct control or a remote control.
As standard, the “Monopok” valves come with BSP thread inlets and outlets but POK SAS offers a full
range of couplings made according to the international standards to mount on the “Monopok” valves:
symmetrical Guillemin couplings DN25, DN32, DN40, DN50, DN65, symmetrical DSP couplings DN40,
DN50, DN65, Storz couplings D/25, C/52 or B/75, instantaneous couplings 1,5″ or 2,5″.
توضیحات:
Type
ball
Operation
manual
Body
symmetrical, stainless steel, aluminium
Associated function
discharge
DN
Max.: 150 mm(5.906 in)Min.: 25 mm(0.984 in)
