نام محصول:
دریچه
نام انگلیسی:
Butterfly valve ITEM 37 series
برند:
OMAL Spa
مشخصات:

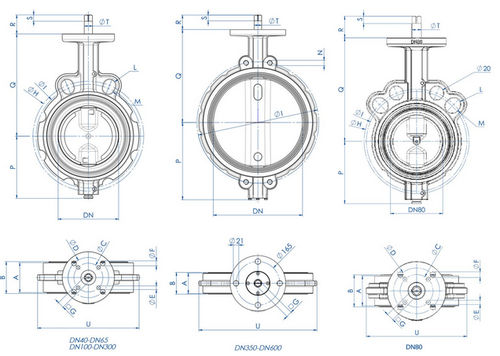

Cast iron butterfly valve for mounting between flanges, “Wafer” type

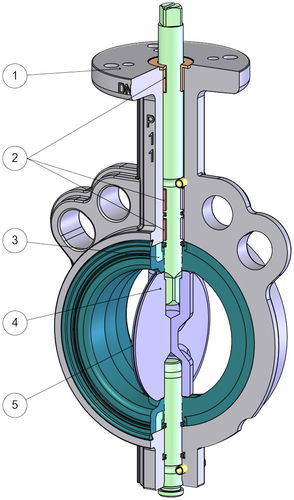

1. EN ISO 5211 top mounting
Easy coupling with every kind of drives.
2. Three guiding bushings on the shaft
It grants a perfect alignment of the shaft on the body and prevents oscillations even with high pressure.
Less friction between the shaft and body.
3. Vulcanized liner on rigid ring
Less deformation of the liner
Easy assembly / disassembly of the liner for maintenance
No deformation of the liner between the flanges during assembly
Greater dimensional accuracy during the injection/molding
4. Shaft in 2 pieces without fixing components
Easy assembly / disassembly of the disc for maintenance
Higher Kv thanks to the central section of the disk thinner than a valve with a single shaft
5. Lapped surface of the disc’s circumference
Better tightness and less wear of the liner
Lower torque due to less friction between the disc and liner
Wide range of LINER materials
Various applications possibility
ATEX Certificate
Installation is allowed in a potential explosive environment
PED Certificate
Full compliance with European Safety Standards for Pressure Equipment
توضیحات:
Type
butterfly
Operation
lever
Media
for liquid food products and beverages
Body$
wafer
Applications
for the gas industry, for industrial applications, for the chemical industry, for the food industry, for machine tools, power line, for oil industry applications, for the pharmaceutical industry, for water treatment, for marine applications, for automobiles, for shipbuilding, for the mining industry, for the paper industry, turbine
Material$
aluminum, bronze, cast iron
Other characteristics
ISO, ATEX
DN
Min.: 40 mm(1.575 in)Max.: 600 mm(23.622 in)
Pressure
Min.: 10 bar(145 psi)Max.: 16 bar(232.1 psi)
Temperature
Min.: -25 °C(-13 °F)Max.: 190 °C(374 °F)
