نام محصول:
دریچه
نام انگلیسی:

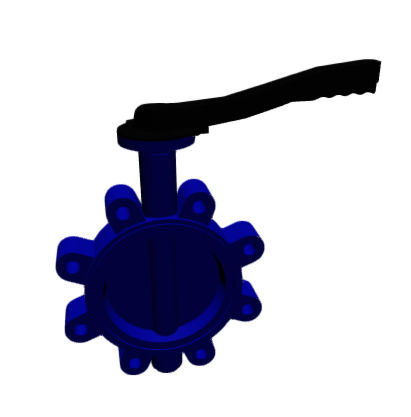

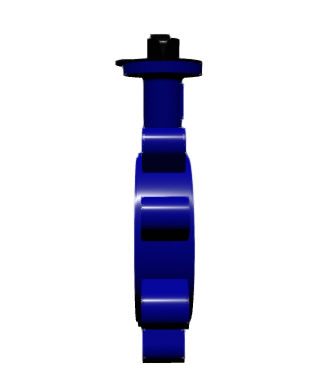

Butterfly valve AK02
برند:
NieRuf Gmbh
مشخصات:
Butterfly valve DN 150 PN10-PN16 Lug type GGG40 with notch lever with grey sleeve EPDM DVGW drinking water, WRAS, ACS, W270
sleeves: – EPDM DVGW drinking water, WRAS, ACS, W270
body material: – SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: – stainless steel 1.4408
actuation: – notch lever with grey sleeve
approval: – EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range – 20 °C to +90 °C)
installation position: – any position
product feature: – Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
توضیحات:
Type
butterfly
Operation
lever
Media
for water, for gas
Body$
lug type
Applications
industrial, for liquids
Material$
EPDM, stainless steel, iron
Other characteristics
DIN
DN
150 mm(5.906 in)
Pressure
Min.: 10 bar(145 psi)Max.: 16 bar(232.1 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 90 °C(194 °F)
