نام محصول:
دریچه
نام انگلیسی:
Ball valve TM-585-70-66-AP
برند:
NIBCO
مشخصات:

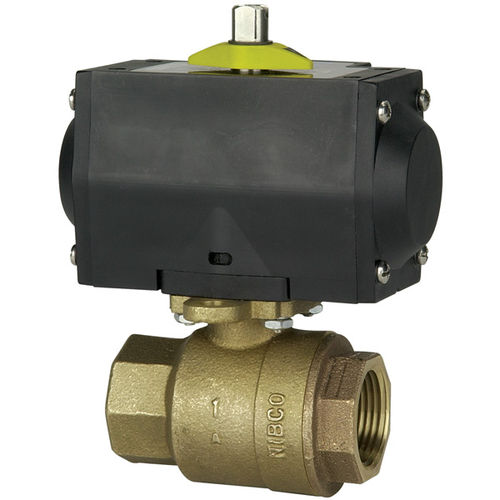

The NIBCO® bronze ball valve provides bubble-tight shutoff at 600 PSI. The valve is equipped with integral ISO direct mount pad for actuation and vented ball. It is pre-assembled with NIBCO® Series 2000 thermoplastic housed pneumatic actuator. The carbon filled PTFE seat ring with stainless steel stem and ball exhibits high chemical resistance properties and is recommended for many high pressure applications.
Blowout-proof stem
Threaded ISO direct mount pad
Vented ball
Standard lever handle, optional NIB-SEAL®
Dezincification resistant
Use in U.S. drinking water applications is prohibited after January 3, 2014
Conforms to MSS SP-110
Actuator mount per ISO 5211
توضیحات:
Type
ball
Operation
pneumatically-operated
Function
for control
Media
for chemicals
Body
threaded, 2-piece, stainless steel, PTFE, bronze
Other characteristics
standard, full-flow, chemical-resistant, pre-assembled
DN
Min.: 0.5 inMax.: 2 in
Pressure
41.4 bar(600.5 psi)
Temperature
400 °F(204 °C)
