نام محصول:
دریچه
نام انگلیسی:

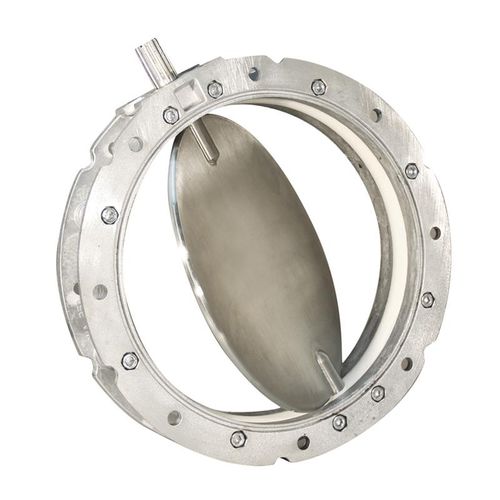

Butterfly valve SVAH series
برند:
MIX S.R.L.
مشخصات:
Butterfly valves suitable for intercepting powdered products
– Size DN100 – 150 – 200 – 250 – 300 – 350 – 400
– 2 half-bodies in cast aluminum with double flange: identical upper and lower flange
– Possibility of installing the fitting for flexible connection SFU
– Pressure / vacuum seal up to 0.2 bar
– Disc in aluminum or stainless steel AISI 304 (upon request in AISI 316)
– NBR gasket (upon request suitable for contact with food) – HNBR Therban – Viton
– Gasket profile: for sealing only on the disc or covering the flanges
– DN5482 splined drive shaft or ISO 5211 square, both in standard or extended length
– ATEX certified version upon request
– Manual, motorized or pneumatic actuators
توضیحات:
Type
butterfly
Operation
manual, pneumatic
Function
for control
Body
double-flange, cast aluminum
Applications
chemical, for powders
Fluid specification
for powders
DN
Min.: 100 mm(3.937 in)Max.: 400 mm(15.748 in)
Temperature
Min.: -25 °C(-13 °F)Max.: 150 °C(302 °F)
