نام محصول:
دریچه
نام انگلیسی:
Ball valve 2L/PV-1
برند:
M&C TechGroup Germany GmbH
مشخصات:
– Manually operated 2-way ball valve
– Ball bore: borehole through the middle, DN 4 mm wide
– Connections: 2 x G 1/4″ i
– Front-panel mounting
– Corrosion-resistant
– High level of gas tightness
– Material of sample-contacting parts: PVDF, Viton®

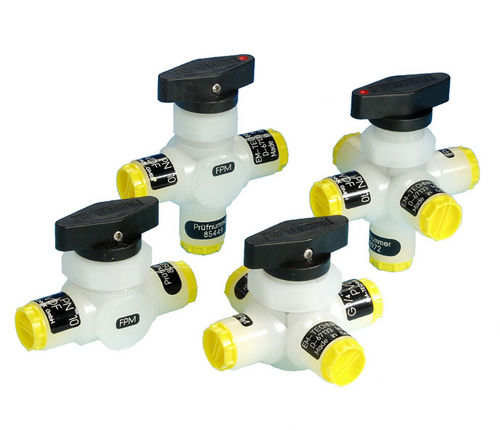

The compact ball valves series L are used to shut off gases and liquids in a temperature range up to +80 °C. The construction of the ball valves is designed to meet the requirements of analytical technology. They are mainly used for shutting off and switching over sample, test and reference gases. The used material guarantees an excellent chemical resistance against flue gases, SO2, etc… Regarding solvents, please contact us.
2‑way ball valve type 2L/PV‑1, DN 4, through‑bore hole, connection: 2 x G 1/4″ female, material: PVDF, Viton®
توضیحات:
Type
ball
Operation
manual
Media
for gas
Body
PVDF
Number of channels
2-way
Associated function
switching
Other characteristics
compact, corrosion-resistant
DN
0.25 mm(0.01 in)
Pressure
10 bar(145 psi)
Temperature
Max.: 80 °C(176 °F)Min.: -20 °C(-4 °F)
