نام محصول:
دریچه
نام انگلیسی:

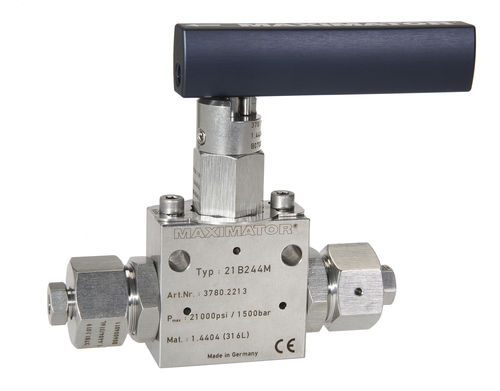

Ball valve 21B series
برند:
Maximator GmbH
مشخصات:

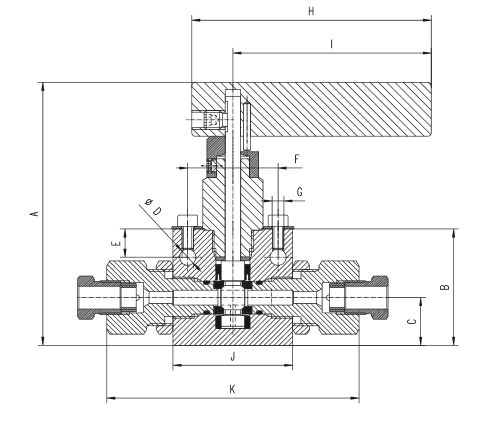

The MAXIMATOR’s 2-way ball valves feature 1/4″ orifices and can withstand pressures up to 21,000 psi (1,500 bar). They feature a 90° handle rotation, offering full flow options, with little or no pressure drops. The design is a one-part trunnion style stem, eliminating the shear failure that is common with two-part stem designs. Ball seat are made out of Torlon materials, offering minimal torque forces, with great sealing effects. Re-torqueable seat glands offer durability and reliability. Standard valves also have Viton O-rings, that have been tested to temperatures up to 150 °C.
توضیحات:
Type
ball
Operation
manual
Media
for gas
Material$
stainless steel
Number of channels
2-way
DN
Min.: 0.25 inMax.: 0.5 in
Pressure
Min.: 0 bar(0 psi)Max.: 1,500 bar(21,755.7 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 150 °C(302 °F)
