نام محصول:
دریچه
نام انگلیسی:

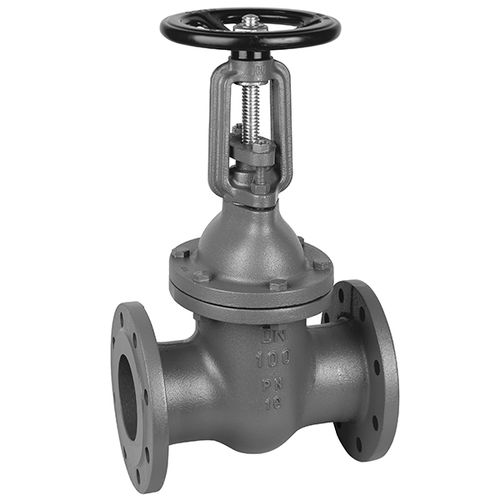

Gate valve MP 160HT
برند:
MARAN E PERACINI
مشخصات:
Cast iron (GJL 250) PN 16 gate valve oval body OS&Y stainless steel (AISI 304) trim 150°C (max). Made in Italy.
Fields of application: Industrial plants – Sewage Water – Water treatment – Air-conditioning systems (HVAC) – Central heating and cooling circuits – Aggressive fluids – Tanks – Fire sprinkler systems.
توضیحات:
Type
gate
Operation
with handwheel
Function
blanketing
Media
for wastewater, for hot water, for cooling water, for industrial water, for seawater, for pure water, for brine, for cold water, for oil, for chemical products, for water
Body$
double-flange
Applications
for the chemical industry, for industrial applications, industrial, for refrigeration, hygienic, for fire safety applications, pump, for the food industry, process, for air conditioning, for viscous liquids, for fire extinguishers, for shipbuilding, for high-viscosity products, for tanks, for marine applications, for oil industry applications, for heating systems, for pharmaceutical applications, HVAC, vacuum, for pipelines, pipe
Material$
stainless steel, cast iron
Number of channels
2-channel
Fluid specification
for aggressive media, for paper stock
Associated function
outlet, fire protection, sewage, for filling applications
Other characteristics
ISO, DIN, bidirectional, high-temperature, for aggressive media
DN
Min.: 40 mm(1.575 in)Max.: 300 mm(11.811 in)
Pressure
16 bar(232.1 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 150 °C(302 °F)
