نام محصول:
دریچه
نام انگلیسی:

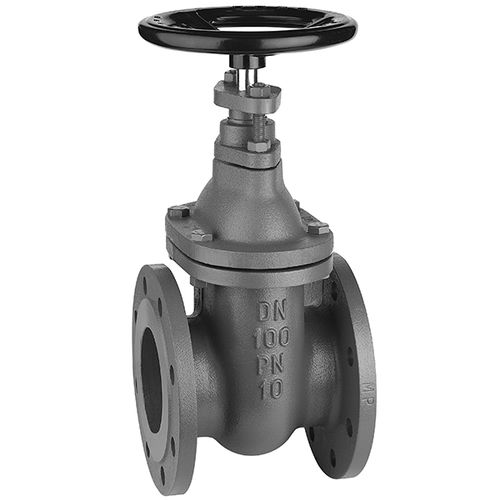

Gate valve 125HT
برند:
MARAN E PERACINI
مشخصات:
Cast iron (GJL 250) PN 10 gate valve flat body inside screw stainless steel (AISI 304) trim 150°C (max)
Main characteristics
• Manufactured in Italy in accordance with EN 1171
• Face-to-face length according to EN 558-1, basic series 14
• Flanged according to EN 1092-2 PN10 with raised face,
undrilled, PN16 or other speci cations on request
• Inside screw thread clockwise closing, adjustable stuf ng box
• Minimal pressure drop
• Hydrostatically tested according to EN 12266-1: Test type P11-P12 Rate A
• Pressure Equipment Directive 2014/68/UE Group 1
• 100% full bore
• Gate valves are bi-directional and can be installed in any position.
However, the preferred orientation is with the stem pointing vertically upwards.
Field of application
• Industrial plants
• Sewage Water
• Water treatment
• Transformer oil: cooling circuits
• Aggressive fuids
• Tanks
Corrosion protection
• Standard version: externally coated with Phenolic-oil resin with zinc-phosphate high corrosion resistance painting Grey Ral 7011
• On request:
integrally epoxy coated
• Customized color available
توضیحات:
Type
gate
Operation
with handwheel
Function
blanketing, distribution, drain
Media
for industrial water, for hot water, for wastewater, for cooling water, for seawater, fuel oil, for diesel, for pure water, for brine, for cold water, for oil, for gasoline, sludge, for hydrocarbons, for fuel, rainwater
Body$
double-flange, flange-mounted, mounting flange
Applications
for heating systems, industrial, chemical, industrial, for process applications, instrumentation, for fire extinguishers, boiler, for water systems, for silos, sludge, irrigation, liquids, for the petroleum industry, HVAC, for air conditioning, air conditioning, pump, for shipbuilding, dam, for marine applications, for pipelines, for HVAC installations, for water treatment, for refrigeration, hygienic, for dirty environments, tank bottom, for transformers, for water purification systems, pipe, for tanks, OEM, sanitary
Material$
cast iron
Number of channels
2-channel
Fluid specification
for corrosive fluids, for aggressive media, for low-viscosity fluids, for fluids with lubricating properties, for paper stock
Associated function
fire protection, sewage, filling, unloading, recirculation
Other characteristics
ISO, standard, DIN, bidirectional, high-performance, high-temperature
DN
40 mm, 300 mm(1.575 in, 11.811 in)
Pressure
10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 150 °C(302 °F)
