نام محصول:
دریچه
نام انگلیسی:

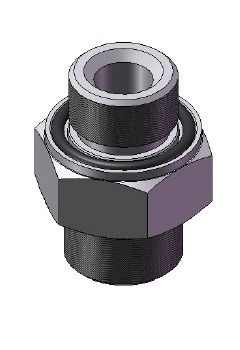

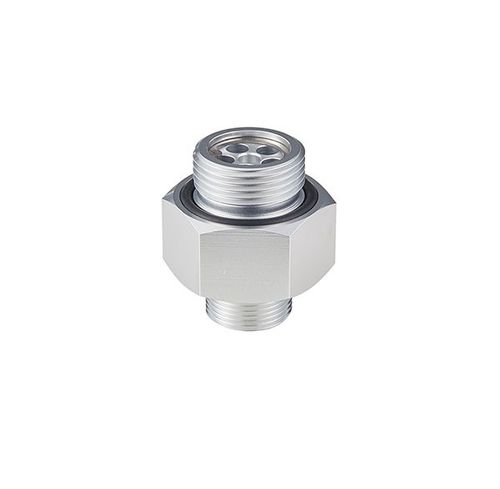

Threaded valve CV
برند:
Lanso Instruments Inc
مشخصات:
This product is a device connecting SF6 gas density meter or density monitor and SF6 gas chamber; after the completion of the assembly, SF6 gas chamber can be effectively sealed. It can be applied to high and medium voltage equipment.
SF6 Gas Insulated Switchgear (GIS)
SF6 insulated circuit breakers
SF6 insulated pole-mounted switch
SF6 insulated transformer
SF6 insulated mutual inductor
SF6 Gas insulated busbar systems
SF6 insulated inflatable cabinet
SF6 insulated RMU
Feature of CV Self-Sealing Valve
Self-sealing: If the device or connector is removed, self-sealing can be done
It can be used repeatedly
Can be used on outdoor switching devices
SF6 gas inflation and vacuum device can be connected
Can be used to connect the SF6 gas recycling device
توضیحات:
Body
threaded, stainless steel, aluminum, copper, medium
Applications
vacuum, busbar
Associated function
switching
Other characteristics
self-sealing, for SF6
DN
6 mm, 8 mm, 12 mm, 20 mm(0.236 in, 0.315 in, 0.472 in, 0.787 in)
Temperature
Max.: 60 °C(140 °F)Min.: -40 °C(-40 °F)
