نام محصول:
دریچه
نام انگلیسی:

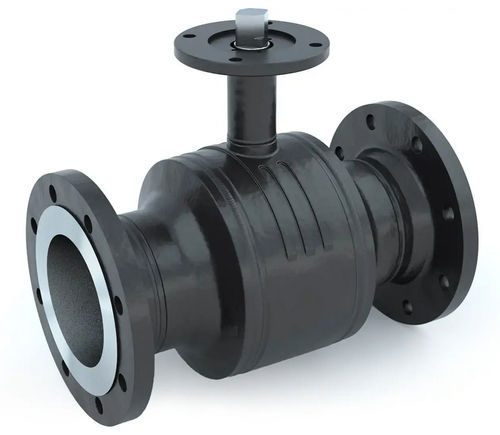

Ball valve Monoball KHO
برند:
KLINGER
مشخصات:
The new KLINGER ball valve Monoball KHO is fully welded and generally used in the sector district heating, heating- and air conditioning and plant construction. The product is durable, functional, maintenance-free and user-friendly.
Maintenance-free
Multi-layer, durable operating stem seal
Certified according to EN 488:2019 and EHP003 certification
Meets the requirements of the AGFW worksheet FW 401 – Part 5
Floating design
Elastically pre-stressed sealing elements with stainless steel sinus springs
Long heat-insulating shaft
Switch shaft made of stainless steel
High degree of resilience against pipework forces
Supports pressurization on both sides
Special types ball valve
Monoball KHO
Pre-insulated design for plastic casing pipe systems
Pre-insulated drainage and vent port with stainless steel for the plastic casing pipe systems
Top flange in accordance with EN ISO 5211 for automation
Full solution with venting and bleeding, insulation and leak warning wires
توضیحات:
Type
ball
Operation
manual
Body$
flange, threaded, welded
Applications
heating, air conditioning
Material$
stainless steel, cast steel
Other characteristics
ISO
DN
Min.: 15 mm(0.591 in)Max.: 250 mm(9.843 in)
Pressure
Min.: 16 bar(232.1 psi)Max.: 40 bar(580.2 psi)
Temperature
Min.: -5 °C(23 °F)Max.: 200 °C(392 °F)
