نام محصول:
دریچه
نام انگلیسی:
Ball valve KHI series
برند:
KLINGER
مشخصات:

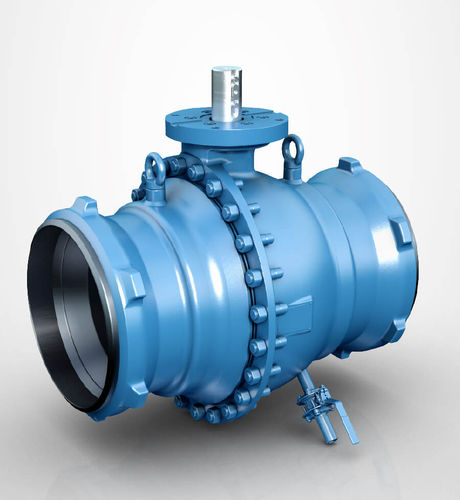

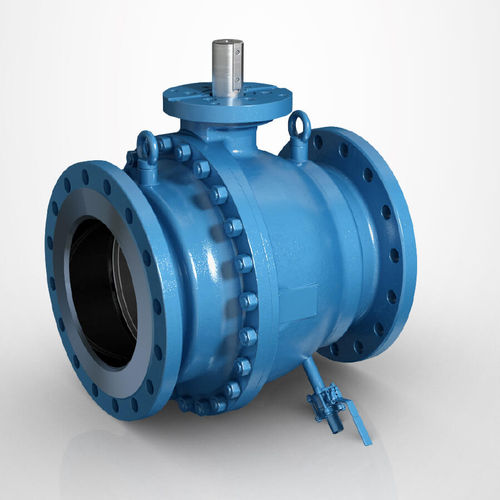

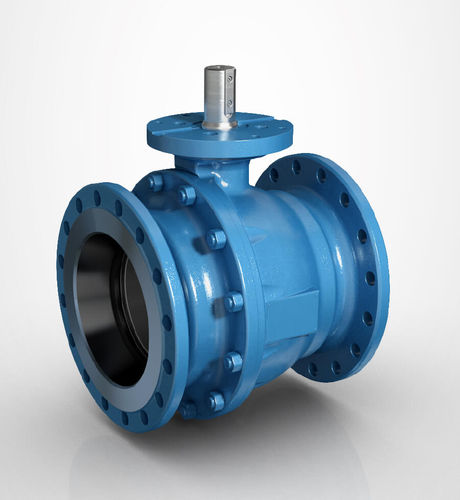

KLINGER BALLOSTAR® KHI BALL VALVES
Decades of reliability guaranteed
KLINGER Ballostar® KHI ball valves will keep up with stricter requirements and are assured to already meet future standards with regard to tensile, compressive and bending stress. Its unique sealing system is another feature of Ballostar® KHI. The test and drain valve welded to the ball valve housing allows the pressure to be relieved intermediately while the ball is closed. The key benefit of this feature is that Ballostar® KHI can be leak-tested at any time without having to open the pipeline. These ball valves are fit for many different applications such as underground district heating trenches, buried pipelines, co-generation power stations, pump stations, steelworks, hydroelectric power stations and tunnel boring machines.
Product Advantages ball valves KHI
Maintenance-free
Supports pressurisation on either side

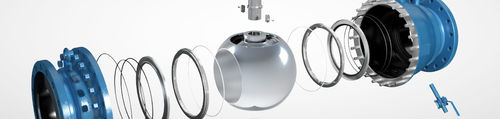

Trunnion-mounted ball with cylindrical full-passage duct
Bidirectional sealing to EN 12266 – leakage rate A
Sealing elements protected against surge pressure
Double block and bleed with intermediate venting (TÜV-certified)
Highly resistant to piping forces
Tested and certified to EN488:2015 (VVS)
Subsequent automation possible at any time (top flange to EN ISO 5211)
Special types ball valves KHI
High temperature version (up to +260 °C)
Special design for tunnel boring machines
Pre-insulated design for underground installations (KHSVI VVS)
Special ball coatings
Metal seat for abrasive media
Oxygen version
Fire Safe version
Vacuum version
Gas version
Oil, grease and silicone-free
توضیحات:
Type
ball
Function
drain, pressurisation
Body$
seat, welded, trunnion-mounted
Applications
heating, pump, flange, abrasive
Other characteristics
bidirectional, grease
Temperature
Min.: -45 °C(-49 °F)Max.: 260 °C(500 °F)
