نام محصول:
دریچه
نام انگلیسی:

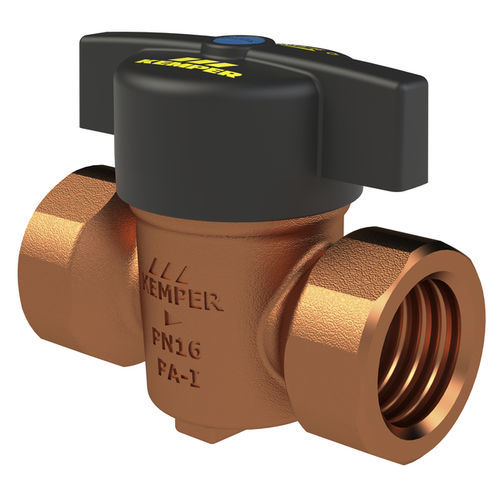

Ball valve 385 00 series
برند:
Kemper Olpe GmbH
مشخصات:
low pressure loss
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
full bore
female pipe thread
removable inner top part TOP-ENTRY, with EPDM gasket body and gunmetal ball
operating handle 90° rotatable
free from dead spots
Standards and Approvals
DVGW approval
WRAS approval
KIWA UK water regulation 4 approval
plastic parts with KTW and W 270 approval
according to DVGW worksheet W 570
according to accepted materials list from German environmental agency
up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
DIN EN 13828
ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT
توضیحات:
Type
ball
Operation
manual
Function
stop
Body$
female
Applications
pipe, parts
Material$
plastic, EPDM, metal
Other characteristics
ISO, DIN, corrosion-resistant, low-pressure, quarter-turn, top-entry
DN
15 mm, 20 mm, 25 mm(0.591 in, 0.787 in, 0.984 in)
Pressure
16 bar(232.1 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 90 °C(194 °F)
