نام محصول:
دریچه
نام انگلیسی:

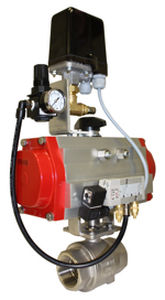

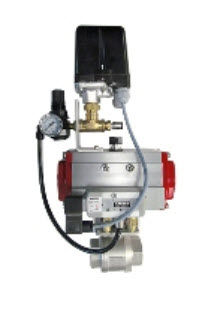

Ball valve AMCV
برند:
Kaeser Compressors
مشخصات:
Protecting compressed air quality – no overwhelming of the air treatment system
Compressed air treatment systems are designed for a certain rate of air flow which, when the system is operating at full load, pushes against the pressurized air in the air distribution network. However, should this resistance not be present, for example during periods of low load or downtime, it is possible that dryers and filters may be “overwhelmed” by the sudden surge in airflow that occurs when the system re-starts. DHS air-main charging systems reliably prevent this from occurring.
Thanks to a patented pulse width modulating control concept, every DHS air-main charging system is ready-prepared for all eventualities and, as is Kaeser‘s way, combines exceptional operational reliability with straightforward operation.
Connection diameters from 1″ NPT to 2″ NPT and 2″ flange to 8″ flange
Larger sizes available; please consult KAESER.
For systems with one or more treatment lines
Perfect integration thanks to various interfaces, configuration options and retrofit kits
Your advantages
Protection from impermissible air flow:
With dropping pressure, the speed of flow in the pipework will quickly increase and potentially cause an overload of all air system components. The installation of a Kaeser DHS air-main charging system guarantees the required minimum pressure and ensures reliable operation, and in particular when re-starting the system following a shut-down.
Gentle pressure build-up in the system:
A pulse width modulated control designed by Kaeser ensures that system intervention opening and closing sequences are performed in very small steps.
توضیحات:
Type
ball
Operation
electropneumatic
Function
pressure-control
Media
for compressed air
Body$
threaded
Other characteristics
high-temperature
DN
1 in, 2 in, 8 in
Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)
Temperature
Min.: 0 °F(-18 °C)Max.: 400 °F(204 °C)
