نام محصول:
دریچه
نام انگلیسی:
Ball valve TEC 44
برند:
Jorc Industrial
مشخصات:
Unblockable motorised ball valve drain
The TEC-44 is a powerful timer controlled motorised ball valve, designed to remove condensate from deliquescent dryers, tanks, vessels and refrigerated dryers.
The TEC-44 is designed to remove heavy contaminated condensate up to pressure ratings of 40 bar. This condensate drain can not be blocked and is applied where all else fails. Draining applications with a high level of contamination (rust, scale etc.) require the TEC-44.
The TEC-44 is impossible to block due to its powerful ball valve rotation and large orifice.
FEATURES

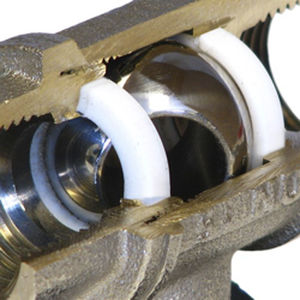

Stainless steel ball valve, offering you crushing power.

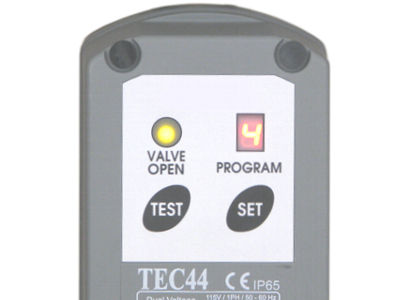

Digital cycle display, offering you a visual display of drain status.
Large (full bore) 12 mm orifice, offering you a drain that cannot block.
Does not air-lock during operation.
Suitable for all types of compressed air systems with a high contamination of its condensate (rust, scale).
TEST (micro-switch) feature.
Micro-processor controlled (high level of time cycle accuracy).
Remote control – optional.
توضیحات:
Type
ball
Operation
electric
Function
purge, drain
Body
large, stainless steel, nickel-plated brass, IP65
Number of channels
2/2-way
Other characteristics
digital, remote control, for effluents
DN
12 mm(0.472 in)
Pressure
Min.: 0 bar(0 psi)Max.: 40 bar(580.2 psi)
Temperature
Min.: 1 °C(34 °F)Max.: 60 °C(140 °F)
