نام محصول:
دریچه
نام انگلیسی:

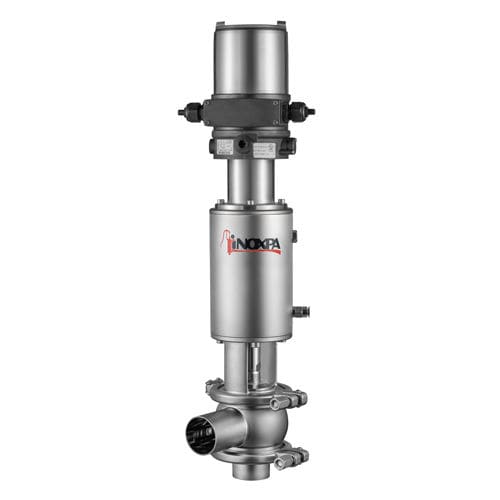

Plug valve INNOVA G
برند:
INOXPA
مشخصات:
The INNOVA G-type valve is a pneumatic flow control single seat valve for hygienic applications. Its main function involves regulating flow, controlling pressure and level.
The plug’s design enables equal percentage flow control to obtain the required Kv factor. This type of control is recommended for systems with significant flow or differential pressure variations.
Positioning is controllable either manually or using a process parameter via the positioning sensor.
Normally closed (NC) valve without seal in the plug.
Equal percentage control plug.
Dual function positioner: position controller (PD) or process controller (PID).
Easy assembly/disassembly of internal parts by loosening a clamp fastener.
Open lantern allows visual inspection of shaft sealing.
360º adjustable body.
Parts in contact with the product AISI 316L (1.4404)
Other stainless steel parts AISI 304 (1.4301)
Gasket EPDM
Surface finish:
Internal Bright polish Ra ≤ 0,8 μm
External Matt
Double-acting pneumatic actuator.
Gaskets: FPM, HNBR.
Seat seal.
Other connection types.
Surface finish: Ra ≤ 0,5 μm.
Jacketed body.
Steam barrier.
توضیحات:
Type
plug
Operation
pneumatic
Function
regulating, flow control
Media
for water
Body$
seat
Applications
for hygienic applications
Other characteristics
normally closed, double-acting
DN
Min.: 25 mm(0.984 in)Max.: 100 mm(3.937 in)
Pressure
Min.: 6 bar(87 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 140 °C(284 °F)
