نام محصول:
دریچه
نام انگلیسی:

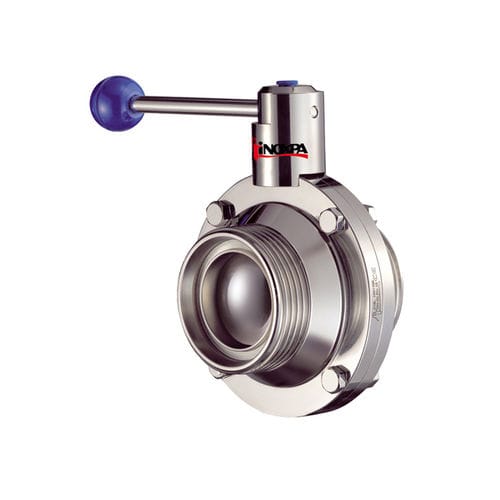

Ball valve 6400
برند:
INOXPA
مشخصات:
Ball valves, whether manually or automatically actuated, are used mainly with viscous fluids containing solid particles, and, generally, in applications requiring an unobstructed flow.
Suitable for the food-processing, beverage, wine-making, oil-making, cosmetic and chemical industries.
The ball valve can be operated automatically with a ball valve actuator or manually with a handle.
The handle blocks the valve in the “open” or “closed” position. The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the ball.
Compact and robust design.
Available in sizes DN 25/1″ to DN 100/4″.
Two-position handle.
Easily interchangeable manual handles and pneumatic or electrical actuators.
Low pressure losses.
Half-bodies exchangeable with any connection type.
DIN 11851 connections.
Marking of seals allows traceability.
Ball: AISI 316L / 316
Flanges: AISI 316L / 316 (forged)
Gasket: EPDM according to FDA 177.2600
Handle: AISI 304 / PP
Surface finish: Hygienic polish
Valve in AISI 304.
Seals in NBR, VMQ or FPM.
All of them according to FDA 177.2600
Connections: welding, DIN, Clamp, SMS, RJT, FIL-IDF, etc.
Handle, lever, safety handle with lock,etc.
Single- or double-acting pneumatic actuator
or electrical actuator.
Position sensors (micro-switches or inductive).
C-TOP control head.
Cleaning and drainage connections.
Third hole.
توضیحات:
Type
ball
Operation
manual
Function
for control
Applications
for the chemical industry, for the food industry, beverage
Other characteristics
compact, DIN, double-acting, single-acting, actuated
DN
Min.: 25 mm(0.984 in)Max.: 100 mm(3.937 in)
Pressure
8 bar(116 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 120 °C(248 °F)
