نام محصول:
دریچه
نام انگلیسی:

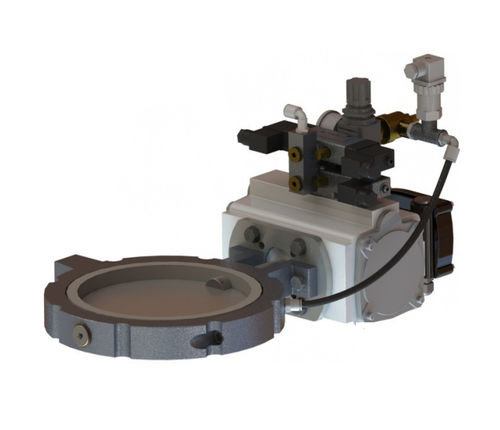

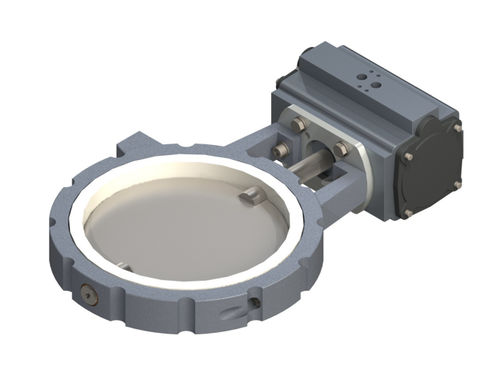

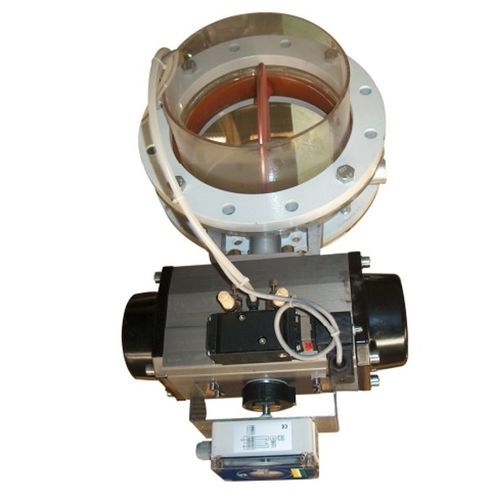

Butterfly valve DKA series
برند:
HOSOKAWA SOLIDS, S.L.
مشخصات:
Dust tight, pressure tight and vacuum tight locking valve for silos, hoppers and pipelines, special design for bulk solids, simple and low-cost design, low height, easy to dismantle and to maintain.
The valve is dust tight, pressure tight and suitable for vacuum; for sealing silos, vessels and
pipelines.
• TÜV certified and approved as pressure equipment directive according to 2014/68/EU directive
• Simple, cost effective assembly
• Less installation height
• Easily replaceable seal due to the vertically split housing
• Easy to maintain
Maximum product temperature: 80ºC.
Suitable for vacuum up to 0,1 bar absolute.
Bulk solid data:
Powder form up to medium hardness.
Free flowing up to medium flowing products.
The device described below does not have any source of ignition. Therefore, it does not apply
the ATEX Directive 2014/34/EU and are authorized to contain potentially explosive
atmospheres (zones 20-21-22) inside.
The electrical equipment must be specified separately and duly certified for the corresponding
ATEX zone.
توضیحات:
Type
butterfly
Applications
vacuum, for pipelines, for bulk materials, for silos, for solids
Material$
steel, stainless steel
Other characteristics
compact, locking, ATEX
DN
Min.: 50 mm(1.969 in)Max.: 500 mm(19.685 in)
Pressure
1.5 bar, 3 bar(21.8 psi, 43.5 psi)
Temperature
Min.: -25 °C(-13 °F)Max.: 80 °C(176 °F)
