نام محصول:
دریچه
نام انگلیسی:

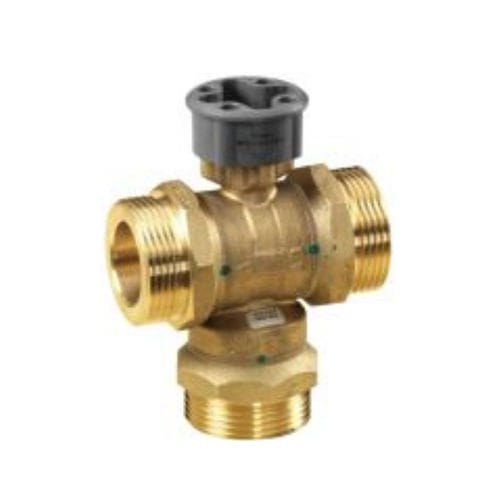

Ball valve VBG3 series
برند:
Honeywell Environmental & Combustion Controls EMEA
مشخصات:
VBG3 Series 3-way threaded control ball valves are used either as mixing- or diverting control valves in closed loop hydronic HVAC systems, with chilled water or hot water, and glycol content up to 50% concentration.
Valves are available in sizes from DN15 to DN50, PN25 pressure rating. Vaves are suitable for use with 2-P on/off actuators, 3-P floating, or 0…10Vdc modulating actuators, and excel both as mixing and diverting flow control valves, and isolation service.
Medium temperature range is 5…120°C. Port A-AB leakage class bubble tight according to EN 12266-1, Port B-AB 0.1% of KVS
توضیحات:
Type
ball
Operation
electrically-actuated
Function
for control, mixing, diverter, flow control
Media
for water
Body$
threaded
Applications
heating, HVAC, air conditioning
Material$
Teflon®
Number of channels
3-way
Other characteristics
modulating
DN
15 mm, 20 mm, 25 mm, 32 mm(0.591 in, 0.787 in, 0.984 in, 1.26 in)
Pressure
25 bar(362.6 psi)
Temperature
Min.: 5 °C(41 °F)Max.: 120 °C(248 °F)
