نام محصول:
دریچه
نام انگلیسی:
Cryogenic valve 01313
برند:
HEROSE
مشخصات:

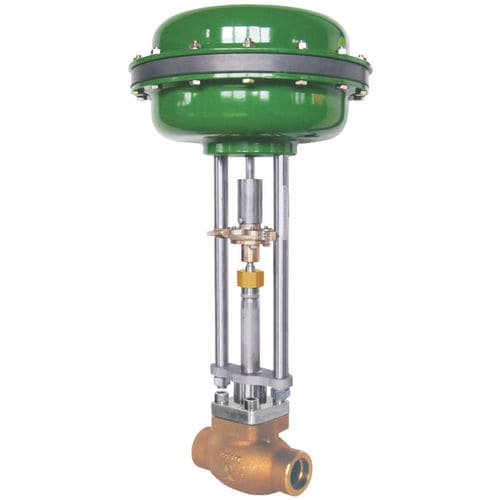

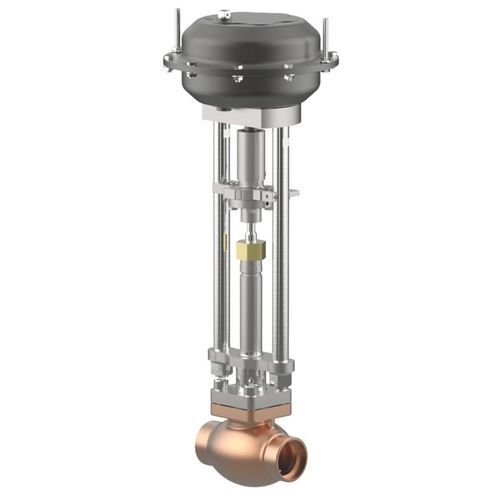

These cryogenic globe valves have a pneumatic actuator at PN 50. They have a bronze body and stainless steel topwork, with internal parts made from bronze. The actuator can be spring closed, air opened or on the contrary. The gland packing is “live loaded”. The actuator is not cleaned or degreased for oxygen service.
توضیحات:
Type
globe
Operation
pneumatically-operated
Function
regulating
Media
for liquefied petroleum gas, for gas, for oxygen, for liquified gas, for liquefied natural gas
Applications
cryogenic
Material$
bronze
Other characteristics
with seal, with cryogenic component
DN
Min.: 10 mm(0.394 in)Max.: 50 mm(1.969 in)
Pressure
50 bar(725.2 psi)
Temperature
Min.: -196 °C(-321 °F)Max.: 120 °C(248 °F)
Flow rate
Min.: 2 m³/h(70.63 ft³/h)Max.: 37 m³/h(1,306.64 ft³/h)
