نام محصول:
دریچه
نام انگلیسی:
Ball valve KV
برند:
Grasso International
مشخصات:

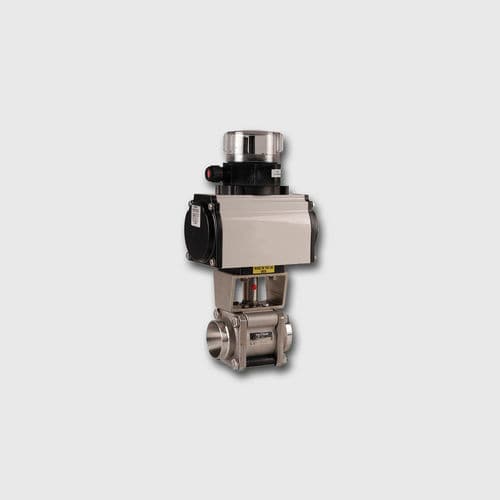

GEA ball valves (KV) are designed for installation in industrial heating and refrigeration systems. The closing device is a bored through ball that opens and closes the pipe by horizontal rotation in relation to the flow direction. The 90° rotation is exerted via the shaft and is either by a hand-operated lever or by electric or pneumatic actuators. By default the bore size in the ball is smaller than the inside diameter of the pipe, versions with full clearance are also available upon request.
Technical Features
Available in steel or stainless steel
Selection of body material as per German DIN EN12284, AD2000 Series W
Working mediums: refrigerants as per EN 378 p. 1, e.g. NH3, R22, R134a and blends with refrigerator oil; neutral, gaseous and liquid media; glycol-based cold brine
The bored through ball is provided with a vent to the supply line to equalize pressure when closed
Closes tight only in the flow direction
Actuation either by hand-operated lever or by electrically or pneumatically powered actuators
توضیحات:
Type
ball
Operation
pneumatic, electric
Applications
industrial, heating, pipe, for refrigeration
Material$
steel, stainless
Other characteristics
DIN
DN
Min.: 15 mm(0.591 in)Max.: 200 mm(7.874 in)
Temperature
Min.: -50 °C(-58 °F)Max.: 200 °C(392 °F)
