نام محصول:
دریچه
نام انگلیسی:
Butterfly valve 410
برند:
GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG
مشخصات:

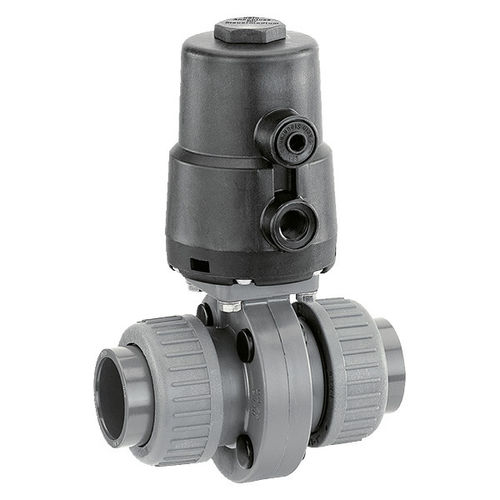

The GEMÜ 410 butterfly valve is pneumatically operated. Normally Closed and Normally Open control functions are available. The valve body is available in a plastic design.
Low weight
Corrosion resistant plastic body
Simple installation with union nut
Space-saving piston actuator made of plastic
Connection types:Union end
Connection standards:BS | DIN
Housing materials:PVC-U, grey
Liner materials:EPDM | FKM
Disc materials:PVDF
Conformities:EAC
توضیحات:
Type
butterfly
Operation
pneumatic
Function
for control
Media
for water, for solvents
Applications
industrial, industrial, chemical, for pipes, for water systems
Material$
plastic, EPDM, PVDF
Number of channels
2/2-way
Other characteristics
compact, normally closed, corrosion-resistant, with actuator, normally open, chemical-resistant
DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)
Pressure
Min.: 0 bar(0 psi)Max.: 6 bar(87 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 60 °C(140 °F)
