نام محصول:
دریچه
نام انگلیسی:
Ball valve EN
برند:
GEFA Processtechnik
مشخصات:

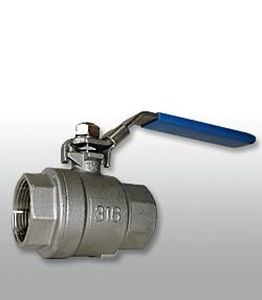

Two-piece stainless steel ball valve with screwed ends. Low pressure loss due to full and extremely smooth passage. Blow-out proof switching shafts are inserted from the inside. The ball valve does not require any maintenance (but should be moved regularly to ensure smooth operation)
Bore Full Bore
Materials
Body Stainless steel 1.4408
Ball Stainless steel 1.4408
Stem Stainless steel 1.4408
Seats PTFE/carbon
Industries and applications
Especially suitable for gasses and liquids
Shut-off devices for measuring units
توضیحات:
Type
ball
Operation
lever
Function
for control, shut-off
Media
for water, for gas
Body$
threaded, 2-piece
Applications
for liquids, for the gas industry
Material$
stainless steel
Associated function
switching
DN
Min.: 8 mm(0.315 in)Max.: 80 mm(3.15 in)
Pressure
63 bar(913.7 psi)
Temperature
Min.: -50 °C(-58 °F)Max.: 180 °C(356 °F)
