نام محصول:
دریچه
نام انگلیسی:

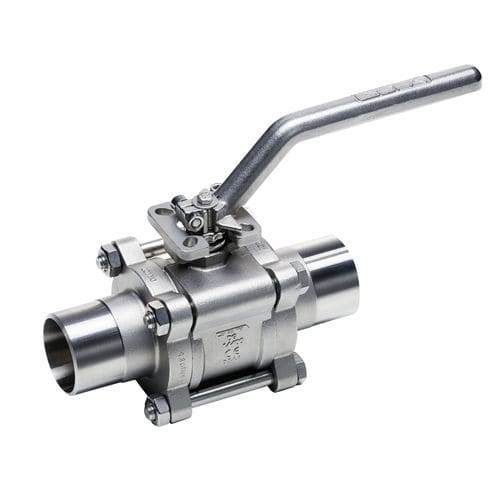

Ball valve DG1L
برند:
GEFA Processtechnik
مشخصات:
Ball valve for food applications according to regulation EU1935/2004, EG 10/2011 and FDA. Three-piece body, pressure rating depending on nominal size up to PN125, ball floating, vacuum-tight.
Bore Full and reduced bore
Special features Can be combined with all connection variants. Cleaned, packaged and labelled for use with food applications.
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12, leakage rate A
توضیحات:
Type
ball
Operation
manual
Media
for liquid food products and beverages
Body$
mounting flange, 3-piece
Applications
for food applications
Material$
stainless steel
Other characteristics
ISO, DIN, full-flow
DN
Min.: 8 mm(0.315 in)Max.: 150 mm(5.906 in)
Pressure
125 bar(1,813 psi)
