نام محصول:
دریچه
نام انگلیسی:

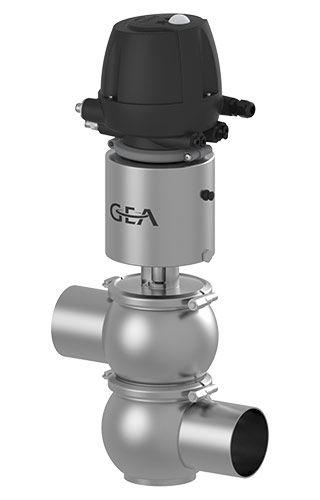

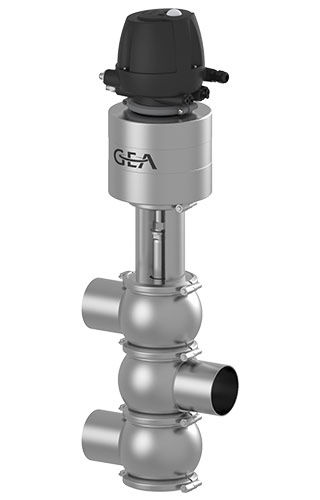

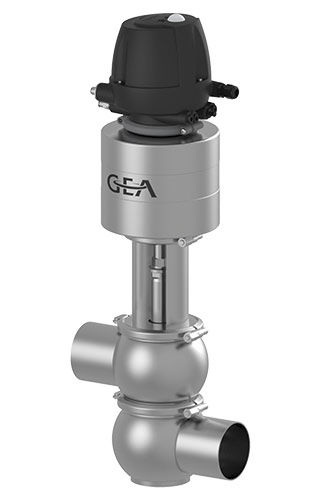

Disc valve VARIVENT®, ECOVENT®
برند:
GEA Tuchenhagen
مشخصات:
Single-seat divert valves series VARIVENT® and ECOVENT® are used for simple divert functions in hygienic applications. The valves are characterized by their ease of operation and flexibility. The individual variants are designed for different flow directions.
Function
In single-seat divert valves, there is only one seal for each switching position in the valve disc separating the particular pipelines from one another. This means liquid can pass from one pipeline to the other in the eventuality of a seal defect. For this reason, single-seat divert valves are not suitable for separating incompatible fluids.
Special features
Certified, hygienic configuration
Metallic stop
Flexibility because of the modular principle
Proven seal geometry
Availability of two valve series
توضیحات:
Type
disc
Function
diverter
Media
for liquid food products and beverages
Applications
hygienic
DN
Min.: 25 mm(0.984 in)Max.: 150 mm(5.906 in)
Pressure
5 bar(72.5 psi)
