نام محصول:
دریچه
نام انگلیسی:

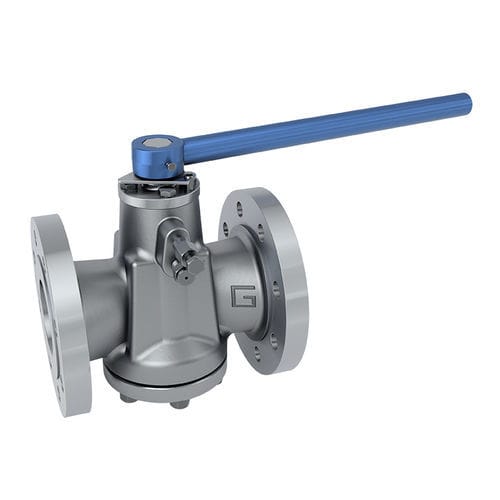

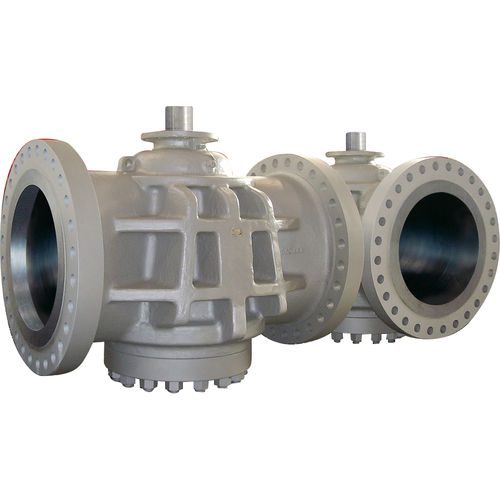

Plug valve
برند:
Galli & Cassina S.p.A.
مشخصات:
Pressure balance lubricated plug valves are metal seated valves providing a tight shut off ( 0 leakage ) sealing, valves shall be regularly lubricated along with their operation by injection of suitable grease. Thanks to the absence of any body cavity and as well as a simple & tough design, they are highly recommended for any critical “Full ΔP” operation and for handling any media with an high % of solids contents, further more they provide an excellent resistance to abrasion, they are free from routine maintenance, providing a long service life.
Main Applications:
Critical bypass, vents, drains and blow-downs to atmosphere
Compressors & Pumps Isolations
Water/Slurry/Gas Injection system isolation
Any critical “Full ΔP” operation
Production Range:
API6D ASME/ANSI 150 up to 2500 Lb API6A from API 2000 up to API 15000 Available in SHORT, VENTURI or REGULAR Pattern
Operator:
Manual Gear or Wrench Operated; Electric Actuator, Pneumatic/Hydraulic actuator single or double acting; Gas Over Oil; Electro Hydraulic
توضیحات:
Type
plug
Operation
manual, pneumatically-operated, electrically-operated, hydraulically-operated
Function
shut-off
Body$
flange
Material$
metal
Other characteristics
ANSI, double-acting, single-acting, bypass, grease
DN
Min.: 0.5 inMax.: 48 in
Pressure
Min.: 600 psiMax.: 15,000 psi
