نام محصول:
دریچه
نام انگلیسی:

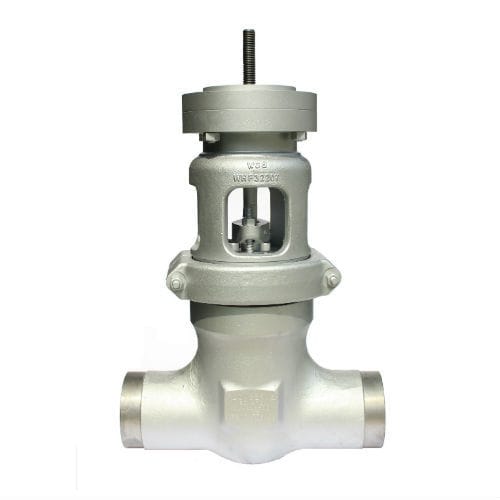

Gate valve Edward® Equiwedge™
برند:
FLOWSERVE
مشخصات:
A large bore gate valve with body guided, split wedges, offering superior leak tightness and performance.
Maximized MTBF and minimize total cost of ownership – Designed to optimize component flexibility while maintaining tight tolerances, to reduce stresses placed on components by thermal binding
Minimized valve leakage – Designs incorporate disk guidance and optimized gate design for tight seating
Materials and welding capabilities for high temperature, high pressure service – Cast and Forged offerings incorporating the latest in hardfacing welding technologies/processes maximize the valve component life-time
Basic (Organic & Inorganic)
Specialty (Fine & Consumer)
Downstream Processing
Power
Combined Cycle
Conventional Steam
Geothermal
توضیحات:
Type
gate
Operation
manual
Media
for oil, for chemical products, for gas
Body$
weld, large-diameter
Applications
for the chemical industry, for the petroleum industry, for the gas industry, for nuclear applications, welding
Material$
metal, cast
Associated function
service
Other characteristics
thermal
DN
Max.: 1,052 mm(41.417 in)Min.: 100 mm(3.937 in)
Pressure
Max.: 420 bar(6,091.6 psi)Min.: 110 bar(1,595.4 psi)
