نام محصول:
دریچه
نام انگلیسی:

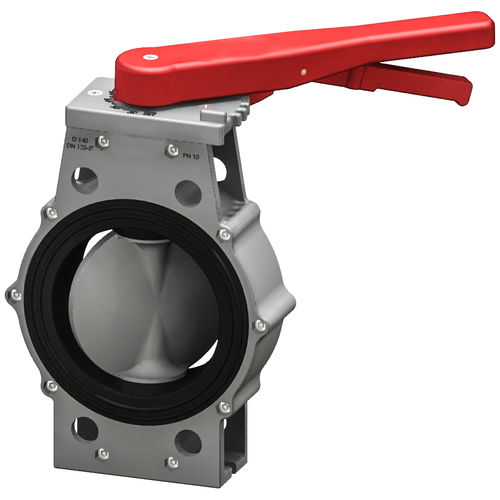

Butterfly valve BV10
برند:
FLAPCON VALVES AND AUTOMATION SYSTEMS CO LTD
مشخصات:
The BV10 is a butterfly valve for shutting off or regulating flow, specifically designed for water applications and equipped with a customisable labelling System. Disc in PVC-U with through shaft. Zinc plated square section steel stem completely isolated from the fluid complying with standard ISO 5211. Can also be installed as an end line valve, bottom discharge valve or tank dump valve The wafer valve can be transformed into a one-way Lug body valve thanks to the set of zinc plated steel inserts available as an optional extra. Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations. Possibility of directly installing a gearbox or pneumatic and/or electric actuators with a standard drilling pattern according to standard ISO 5211.
توضیحات:
Type
butterfly
Operation
lever, pneumatic, electric
Function
shut-off, regulating
Media
for water, for chemical products
Body$
wafer
Applications
liquids
Material$
PVC-U
Other characteristics
ISO
DN
Min.: 50 mm(1.969 in)Max.: 300 mm(11.811 in)
Pressure
10 bar(145 psi)
Temperature
Min.: -40 °C(-40 °F)Max.: 90 °C(194 °F)
