نام محصول:
دریچه
نام انگلیسی:
Ball valve VS1 series
برند:
FISHER REGULATORS
مشخصات:

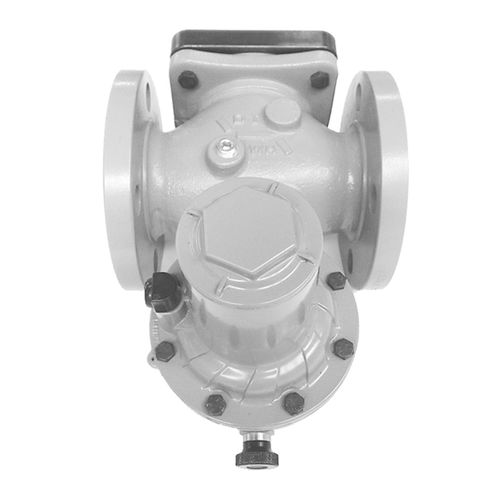

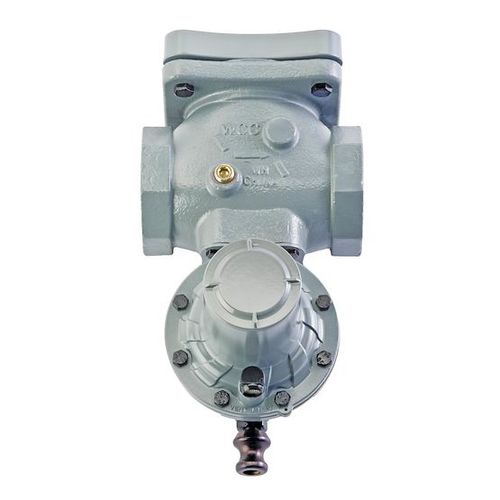

The Type VS100 slam shut is constructed in such a way that it shuts off the gas flow to the downstream system when the outlet pressure goes above or declines below the predefined levels.
Type VS100 slam shut has a ductile iron and steel body, and type VSX4 slam-shut device. It has a removable orifice enclosed within a bonnet.
Features
-Medium and High Capacity Body Sizes Available
-Quick Response Time
-Ductile Iron and Steel Body Construction
-Complies with The Pressure Equipment Directive (97/23/EC) Requirements
-Overpressure and Underpressure trips available.
-Modular body construction allows for adding regulator module in the future with no pipe charges
توضیحات:
Type
ball
Operation
pneumatically-operated
Function
shut-off
Media
for gas
Body$
modular
Material$
steel, iron
Associated function
outlet
Other characteristics
high-capacity
DN
19 mm, 30 mm(0.748 in, 1.181 in)
Pressure
Min.: 30 mbar(0.4 psi)Max.: 5,500 mbar(79.8 psi)
Temperature
-30 °C, -20 °C, 66 °C(-22 °F, -4 °F, 151 °F)
