نام محصول:
دریچه

نام انگلیسی:

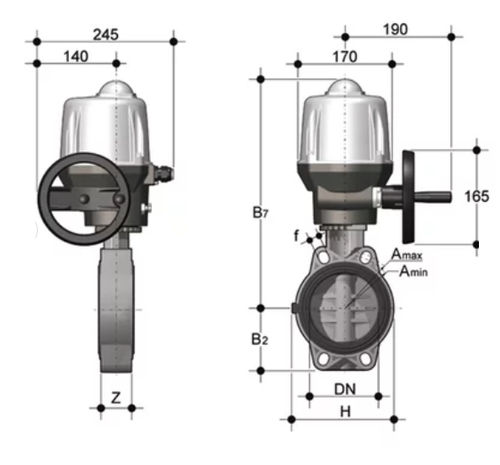

Butterfly valve FEOV/CE

برند:
FIP – Formatura Iniezione Polimeri

مشخصات:
The FE is a butterfly valve for shutting off or regulating flow, specifically designed for water conveyance applications.

In addition to the manually actuated version, FE is also available in FE/ CE electrically actuated and FE/CP pneumatically actuated configurations. FE/CD and FE/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products.

Main features:

Electric actuator constructed according to FIP specifications; with plastic shell and standard emergency override. Available with voltages from 12 to 240V

Rack & pinion type pneumatic actuator constructed according to FIP specifications: fully protected against weather corrosion available in double-acting (DA) or simple-acting normally closed (NC) or normally open (NO) versions

Drilling pattern with oval slots that allow coupling to flanges according to numerous international standards

Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid

توضیحات:
Type
butterfly

Operation
electrically-actuated

Function
regulating

Media
for water

Body$
wafer

Material$
PVC-U

Other characteristics
standard, normally closed, double-acting, normally open, emergency

DN
125 mm, 150 mm(4.921 in, 5.906 in)

Pressure
10 bar(145 psi)
