نام محصول:
دریچه
نام انگلیسی:
Ball valve LKDAC/CE
برند:
FIP – Formatura Iniezione Polimeri
مشخصات:

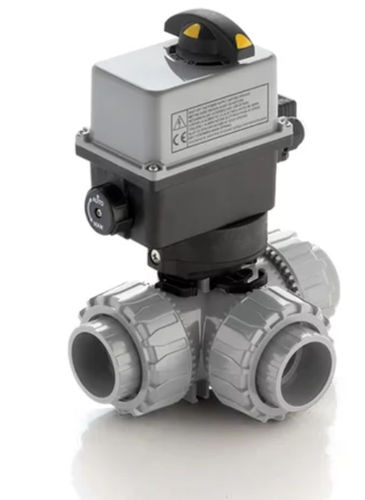

3 way DUAL BLOCK® ball valve with female ends for solvent welding, ASTM series with electric actuator 24 V AC/DC “L” ball.
FIP has developed a TKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. TKD is a True Union diverting and mixing ball valve that meets the most stringent needs required in industrial applications.
In addition to the manually actuated version, TKD is also available in TKD/CE electrically actuated and TKD/CP pneumatically actuated configurations. Actuators are firmly connected to the valve by the special FIP PowerQuick modules fully made of PP-GR technopolymer. TKD/CE and TKD/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products.
Main features:
Electric actuator constructed according to FIP specifications; with plastic shell and standard emergency override. Available with voltages from 12 to 240V
Rack & pinion type pneumatic actuator constructed according to FIP specifications: fully protected against weather corrosion available in double-acting (DA) or simple-acting normally closed (NC) or normally open (NO) versions. Three different positions according to 2 configurations are possible with T ball: 0°-90°-180° and 0°-90°-270°
High surface finish stem with double O-Ring. The double connection key system guarantees solid and reliable actuator torque transmission to the ball
توضیحات:
Type
ball
Operation
electric
Function
mixing
Body$
female, weld
Applications
industrial
Material$
PVC-U, PP
Number of channels
3-way
Other characteristics
standard, normally closed, double-acting, normally open, emergency
DN
Min.: 10 mm(0.394 in)Max.: 50 mm(1.969 in)
Pressure
10 bar, 16 bar(145 psi, 232.1 psi)
