نام محصول:
دریچه

نام انگلیسی:
Ball valve FKOC/CE

برند:
FIP – Formatura Iniezione Polimeri

مشخصات:

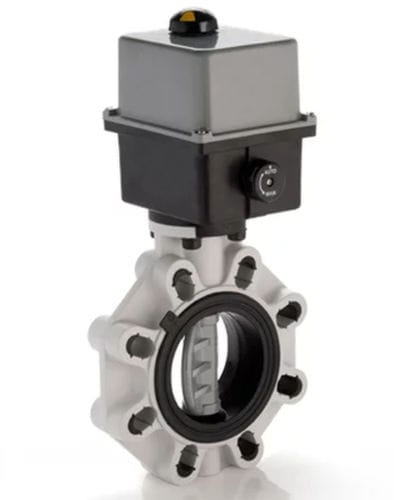

The FK is a butterfly valve for shutting off and regulating flow, with structural characteristics that make it ideal for industrial applications requiring high performance and long-term reliability.

In addition to the manually actuated version, FK is also available in FK/CE electrically actuated and FK/CP pneumatically actuated configurations. FK/CE and FK/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products.

Main features:

Electric actuator constructed according to FIP specifications; with plastic shell and standard emergency override. Available with voltages from 12 to 240V.

Rack & pinion type pneumatic actuator constructed according to FIP specifications: fully protected against weather corrosion available in double-acting (DA) or simple-acting normally closed (NC) or normally open (NO) versions.

Square section stailnless steel stem completely isolated from the fluid.

Body in fibreglass reinforced polypropylene based compound (PP-GR) UV resistant and characterised by high mechanical resistance.

Drilling pattern with oval slots that allow coupling to flanges according to numerous international standards. The special self-centring inserts in ABS supplied for DN 40÷200 guarantee the correct axial alignment of the valve during installation. For DN 250÷400 valves, the drilling pattern for the self-centring system is of the traditional type according to DIN and ANSI standards.

توضیحات:
Type
ball

Operation
electrically-actuated

Function
shut-off, regulating

Media
for water

Body$
lug type

Applications
for industrial applications

Material$
ABS, PVC, polypropylene

Other characteristics
DIN, ANSI, normally closed, double-acting, normally open, emergency

DN
125 mm, 150 mm, 200 mm(4.921 in, 5.906 in, 7.874 in)

Pressure
10 bar(145 psi)
