نام محصول:
دریچه
نام انگلیسی:
Ball valve VZBM
برند:
FESTO
مشخصات:

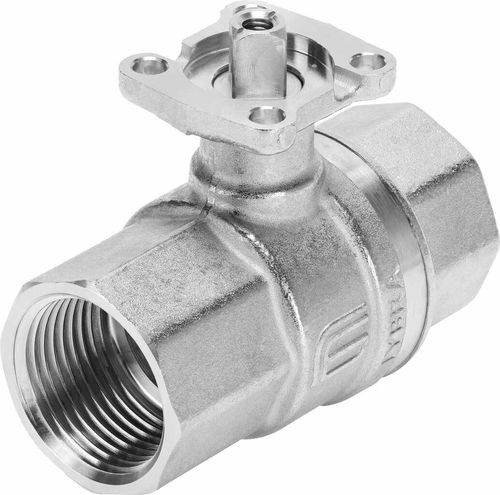

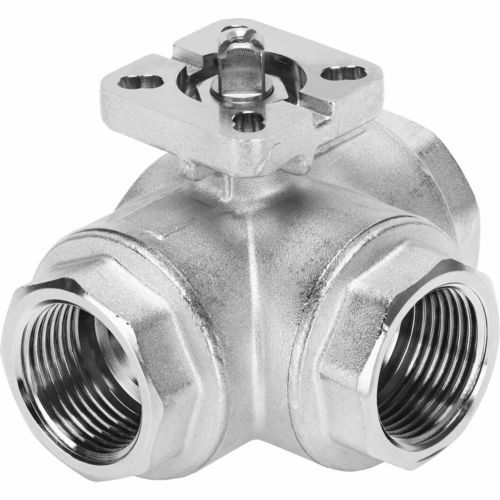

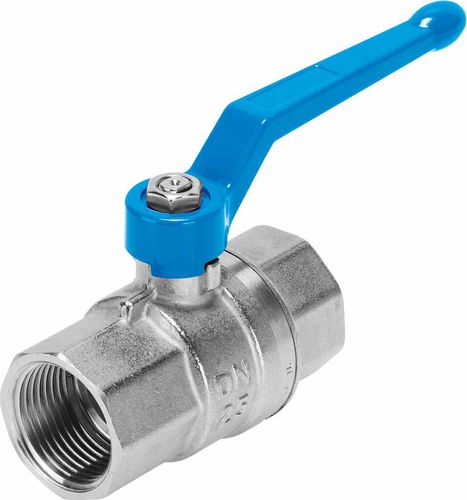

VZBM 2-way or 3-way ball valve in brass with L and T holes. VZBM can be automated or operated with a hand lever.
• Brass design
• Pipe thread to EN 10226-1
توضیحات:
Type
ball
Operation
manual, pneumatic
Function
for control, shut-off
Media
for water, for gas, for compressed air, for inert gases
Body$
threaded, in-line
Applications
for industrial applications, for the chemical industry, for pipelines, for pipes
Number of channels
3-way, 2/2 way, 2-way
Other characteristics
ISO, DIN, bidirectional
DN
Min.: 15 mm(0.591 in)Max.: 100 mm(3.937 in)
Pressure
16 bar, 25 bar, 40 bar, 50 bar(232.1 psi, 362.6 psi, 580.2 psi, 725.2 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 200 °C(392 °F)
Flow rate
Min.: 3.5 m³/h(123.6 ft³/h)Max.: 1,414 m³/h(49,934.94 ft³/h)
