نام محصول:
دریچه
نام انگلیسی:

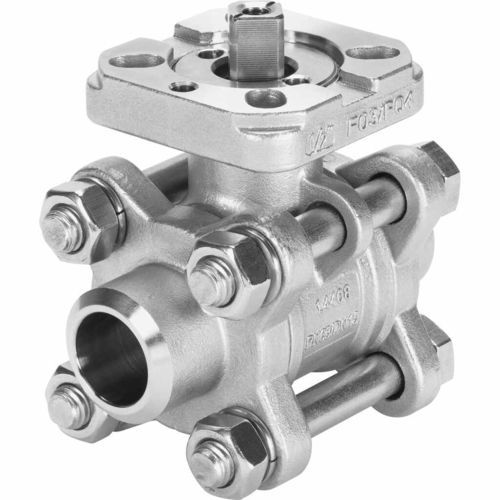

Ball valve VZBA
برند:
FESTO
مشخصات:
For trouble-free control of aggressive media or gases in piping systems: the automatable 3-way ball valve VZBA in stainless steel.
• Automatable 2-way or 3-way ball valve
• Stainless steel design
• Blow-out proof shaft
• Manual operation possible using hand lever
• Connecting thread according to EN 10226-1
• Mounting flange to ISO 5211
• Use in zone 1, 21, 2, 22
توضیحات:
Type
ball
Operation
manual
Function
for control
Media
for water, for oil, for chemical products, for gas, for inert gases
Body$
with ISO flange connections, threaded, in-line
Applications
for industrial applications, for process applications, for liquids, for pipelines
Material$
stainless steel
Number of channels
3-way, 2-way
Other characteristics
ISO, bidirectional
DN
Min.: 8 mm(0.315 in)Max.: 100 mm(3.937 in)
Pressure
63 bar(913.7 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 200 °C(392 °F)
Flow rate
Min.: 7 m³/h(247.2 ft³/h)Max.: 1,414 m³/h(49,934.94 ft³/h)
