نام محصول:
دریچه
نام انگلیسی:
Ball valve VAPB
برند:
FESTO
مشخصات:

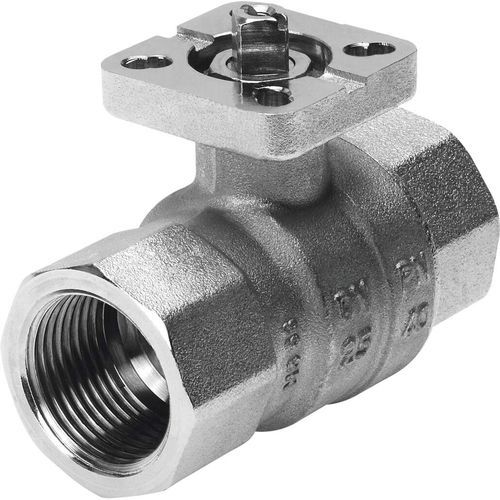

The ball valve series VAPB offers high-quality ball valve solutions with full through-flow, for industrial applications. In brass (MS) or stainless steel (CR) for enhanced corrosion resistance.
• Automatable 2-way ball valve
• Brass design
• Blow-out proof shaft
• Manual operation possible using hand lever
• Connecting thread according to EN 10226-1
• Mounting flange to ISO 5211
توضیحات:
Type
ball
Operation
manual
Media
for water, for oil, for chemical products, for gas, for compressed air, for inert gases
Body$
with ISO flange connections, threaded, weld, in-line
Applications
for industrial applications, for the chemical industry, process, for liquids, for pipelines, for pipes
Material$
stainless steel
Number of channels
2-way
Other characteristics
DIN, compact, bidirectional, corrosion-resistant
DN
Min.: 15 mm(0.591 in)Max.: 63 mm(2.48 in)
Pressure
25 bar, 40 bar(362.6 psi, 580.2 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 150 °C(302 °F)
Flow rate
Min.: 5.9 m³/h(208.36 ft³/h)Max.: 535 m³/h(18,893.35 ft³/h)
