نام محصول:
دریچه
نام انگلیسی:

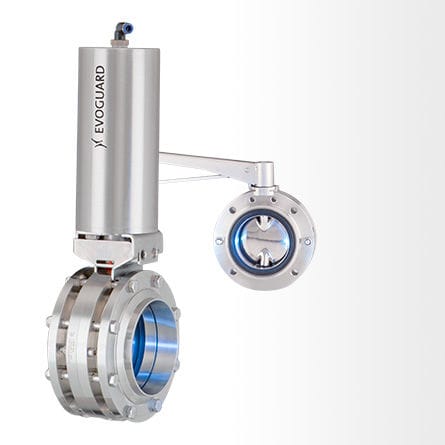

Butterfly valve B
برند:
Evoguard GmbH
مشخصات:
Inexpensive shut-off fitting in the hygienic product and CIP section
Solidly designed valve disk
Safe guidance of the disk thanks to bushes in the housing
Seal with a small volume and extension gaps for compensating temperature expansion
Seal flush against the housing, bevelled seat ensures that the disk opens and closes securely with minimal wear
Reliable sealing over the entire temperature range
Innovative seal design and composition of the elastomer according to the latest research findings
Easy installation with different connection variants
توضیحات:
Type
butterfly
Operation
manual, pneumatic
Function
shut-off
Media
for water, for liquid food products and beverages
Body$
double-flange, threaded, ATEX
Applications
hygienic
Material$
EPDM, stainless steel
DN
Min.: 25 mm(0.984 in)Max.: 150 mm(5.906 in)
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
