نام محصول:
دریچه
نام انگلیسی:
Butterfly valve
برند:
ERHARD
مشخصات:
DN 400 – 1200
PN 10 – 16
Body: EN-JS1030
Coating: Epoxy, Enamel

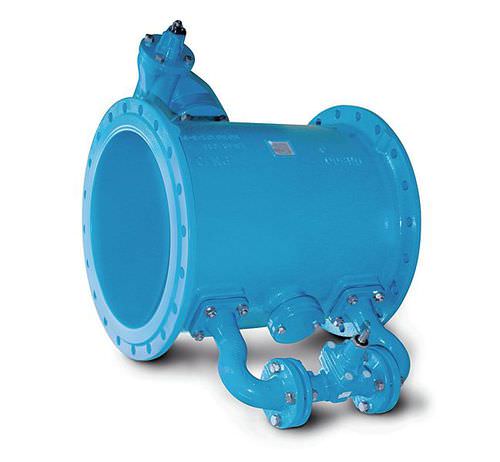

Special elongated design DIN EN 558 basic series 15 with closeably by-pass for reliable filling and draining of the pipeline without water hammer effects. From the closed position, the by-pass equipped with a gate valve and dimensioned to 1/10 of the nominal width is opened first and only then the main valve.
توضیحات:
Type
butterfly
Function
purge
Media
for water
Body$
double-offset
Other characteristics
high-performance
DN
Min.: 400 mm(15.748 in)Max.: 1,200 mm(47.244 in)
Pressure
Min.: 10 bar(145 psi)Max.: 16 bar(232.1 psi)
