نام محصول:
دریچه
نام انگلیسی:

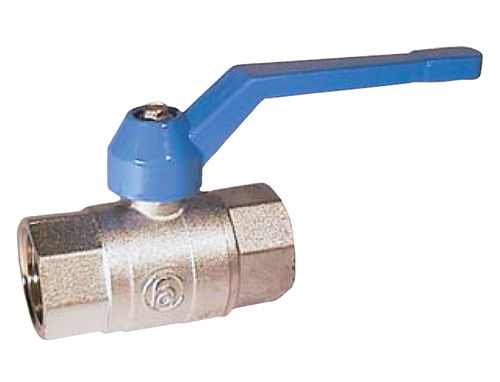

Ball valve AG series
برند:
END-Armaturen GmbH & Co. KG
مشخصات:
DESIGN
Body consists of 2 screwed parts, heavy-
model, maintenance free. ful bore, from ‘h~
stamped according 10 AD-approval A4.
OPERATION
Rotation of the handle or butterfly handle
through 90″. (Handle is reversible through
180’).
CONNECTION
Female thread ‘I* – 2″ according to ISO 228
PRESSURE RANGE
Nominal pressure (see table page 3) up to
+8Q°C. For higher temperatures please refer
to the Pressure-Temperature-Diagram.
TEMPERATURE RANGE
-20’C upto*120°C.
توضیحات:
Type
ball
Operation
manual
Function
for control
Media
for water
Material$
brass
Number of channels
2-way
DN
0.25 in
Pressure
Min.: 0 bar(0 psi)Max.: 40 bar(580.2 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 120 °C(248 °F)
